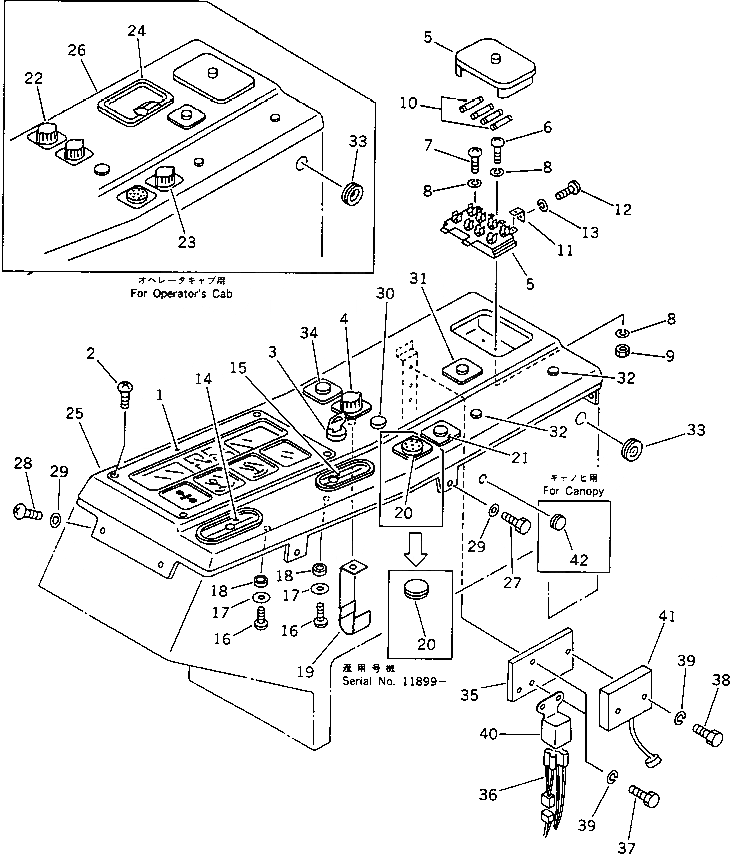

Запчасти Komatsu PC40-6 ПАНЕЛЬ ПРИБОРОВ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-06-21240

GAUGE ASS'Y,CLUSTER

|1

20T-06-31310

GAUGE ASS'Y,CLUSTER

2

01224-70520

SCREW

3

20S-06-31130

STARTING SWITCH,STARTING

|3

08086-20000

SWITCH,STARTING

4

205-06-71331

SWITCH,LAMP

5

20S-06-21130

BOX,FUSE

6

01220-40525

SCREW

7

01220-40520

SCREW

8

01601-20513

WASHER,SPRING

9

01580-10504

NUT

10

08040-02000

FUSE¤ 20A

11

20S-06-21150

PLATE

12

01220-40406

SCREW

13

01601-20410

WASHER,SPRING

14

20S-06-21161

PLATE

15

20S-06-21171

PLATE

16

01220-40510

SCREW

17

362-54-23680

WASHER

18

20S-06-21690

SPACER

19

20S-06-21180

CLIP

20

09415-01008

CAP

|20

600-815-1790

SIGNAL

21

09415-00706

CAP,(FOR CANOPY)

22

205-06-71341

SWITCH,WIPER (FOR CAB)

23

205-06-71321

SWITCH,HEATER (FOR CAB)

24

20S-06-21210

ASHTRAY,(FOR CAB)

25

20S-06-31260

PANEL,(FOR CANOPY)

26

20S-06-31270

PANEL,(FOR CAB)

27

01010-50820

BOLT

28

01220-40820

SCREW

29

01643-30823

WASHER

30

09415-00706

CAP

31

09415-01610

CAP

32

09415-00706

CAP

33

08037-02512

GROMMET

34

09415-00706

CAP,(FOR CANOPY)

35

20T-06-41460

BRACKET

36

20T-06-41160

WIRE ASS'Y

37

01010-50620

BOLT

38

01010-50635

BOLT

39

01602-20619

WASHER,SPRING

40

600-815-7530

RELAY

41

600-815-7520

TIMER

42

09415-01008

CAP,(FOR CANOPY)
