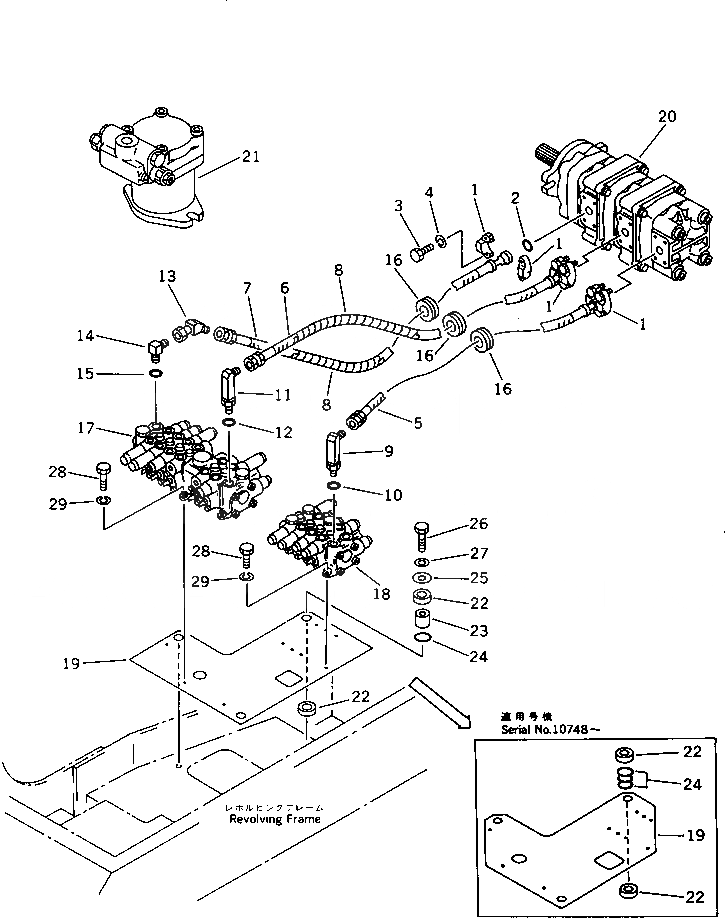

Запчасти Komatsu PC40-6 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) (ДЛЯ МОЛОТА) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

07371-30400

FLANGE

2

07000-12021

O-RING

3

01010-50830

BOLT

4

01602-20825

WASHER,SPRING

5

20T-62-66490

HOSE

|5

20T-62-66220

HOSE

6

20T-62-66480

HOSE

|6

20T-62-66210

HOSE

7

20T-62-66470

HOSE

|7

20T-62-66190

HOSE

8

203-62-32440

COVER

9

20R-62-21520

ELBOW

10

07002-12034

O-RING

11

20R-62-21510

ELBOW

12

07002-12034

O-RING

13

20T-62-61230

TUBE

14

07235-10422

ELBOW

15

07002-12034

O-RING

16

08037-03614

GROMMET

17

709-36-12703

VALVE ASS'Y,(SEE FIG.6201)

|17

709-36-12702

VALVE ASS'Y,(SEE FIG.6201)

|17

709-36-12701

VALVE ASS'Y,(SEE FIG.6201)

G-1

20T-970-X150

HYDRAULIC UNIT GROUP,(FOR BREAKER)

18

709-34-12202

VALVE ASS'Y,(SEE FIG.6221)

|18

709-34-12201

VALVE ASS'Y,(SEE FIG.6221)

|18

709-34-12200

VALVE ASS'Y,(SEE FIG.6221)

19

20S-60-35131

BRACKET

|19

20S-60-35130

BRACKET

20

705-41-08040

PUMP ASS'Y,(SEE FIG.6104)

21

708-7T-00051

SWING MOTOR ASS'Y,(SEE FIG.6443)

|21

708-7T-00050

SWING MOTOR ASS'Y,(SEE FIG.6443)

22

203-62-58360

CUSHION

|22

203-62-42770

CUSHION

23

20X-62-21550

SPACER

24

07000-03025

O-RING

|24

07000-03025

O-RING

25

566-35-42430

PLATE

26

01010-51250

BOLT

27

01643-31232

WASHER

28

01010-50825

BOLT

29

01602-20825

WASHER,SPRING
