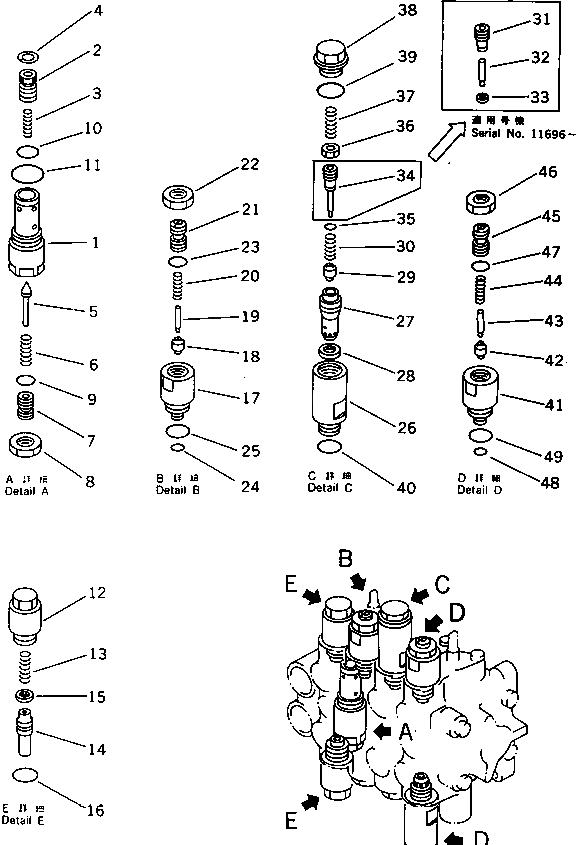

Запчасти Komatsu PC40-6 4-Х СЕКЦИОНН. КЛАПАН (/) (ПОВОРОТН.¤ СКОРОСТЬ ДВИЖЕНИЯ¤ ОТВАЛ¤ НАВЕСН.ОБОРУД) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-34-12202

VALVE ASS'Y

|1

709-34-12201

VALVE ASS'Y

|1

709-34-12200

VALVE ASS'Y

|1

700-28-51000

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

VALVE

3

700-20-51430

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|12

709-30-61100

VALVE ASS'Y,SUCTION

12

709-30-61110

SLEEVE

13

700-20-62170

SPRING

14

VALVE

15

SEAL

16

07002-02034

O-RING

|17

709-30-66400

VALVE ASS'Y,SAFETY

|17

709-30-66300

VALVE ASS'Y,SAFETY

17

SLEEVE

18

POPPET

|18

POPPET

19

PISTON

20

SPRING

|20

SPRING

21

SCREW

22

NUT

23

O-RING

24

709-32-11840

O-RING

25

07002-02034

O-RING

|26

709-30-64101

VALVE ASS'Y,SUCTION AND SAFETY

|26

709-30-63800

VALVE ASS'Y,SUCTION AND SAFETY

26

709-30-62110

SLEEVE

27

VALVE

|27

VALVE

28

SEAL

29

POPPET

|29

POPPET

30

SPRING

31

709-30-62350

SCREW

32

709-30-62340

PISTON

33

709-30-62210

SEAL

34

PISTON

35

O-RING

36

NUT

37

SPRING

38

709-30-62150

PLUG

39

07002-12034

O-RING

40

07002-02034

O-RING

|41

709-30-65900

VALVE ASS'Y,SAFETY

41

SLEEVE

42

POPPET

|42

POPPET

43

PISTON

44

SPRING

45

SCREW

46

NUT

47

07000-02011

O-RING

48

709-32-11840

O-RING

49

07002-02034

O-RING
