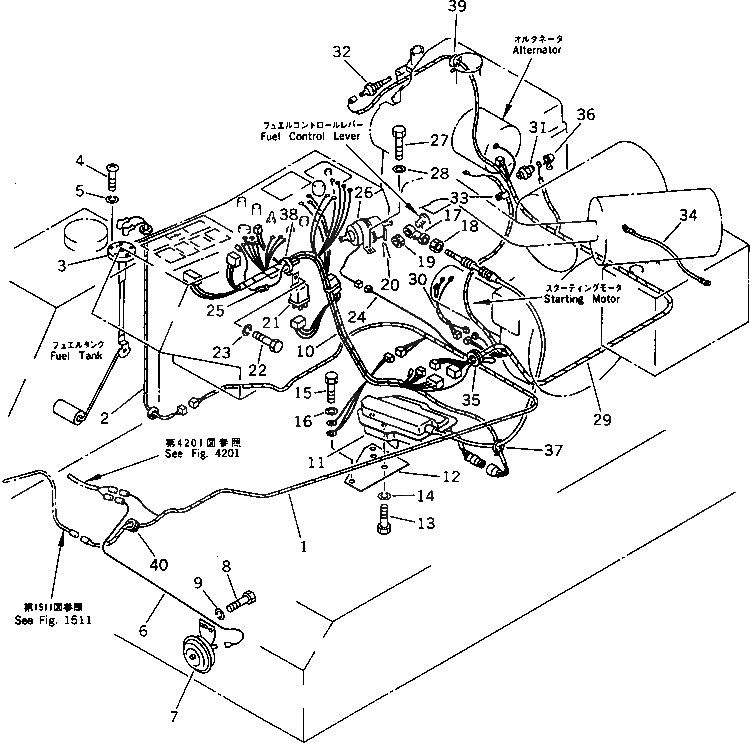

Запчасти Komatsu PC40-6 ЭЛЕКТРИКА(№-898) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20T-06-41140

WIRE ASS'Y

2

20T-06-31180

WIRE

3

20T-06-31110

FLOAT

4

01220-40408

SCREW

5

01602-20410

WASHER,SPRING

6

20T-06-41150

WIRE

7

08160-41200

HORN

8

01010-50816

BOLT

9

01602-20825

WASHER,SPRING

10

20T-06-41121

WIRE ASS'Y

10

20T-06-41120

WIRE ASS'Y

10

22W-06-13590

DIODE

11

20T-06-41410

MOTOR,ENGINE STOP

12

20T-06-41420

PLATE

13

01010-50816

BOLT

14

01602-20825

WASHER,SPRING

15

01010-51022

BOLT

16

01602-21030

WASHER,SPRING

17

04250-40639

END,ROD

18

01580-00605

NUT

19

01590-10607

NUT

20

04050-11212

PIN,COTTER

21

20S-06-31510

RELAY ASS'Y,(FOR ENGINE STOP MOTOR)

22

01010-50612

BOLT

23

01602-20619

WASHER,SPRING

24

20T-06-41320

WIRE

25

08040-00500

FUSE, 5A

26

20T-06-41310

PUMP

27

01010-50616

BOLT

28

01643-30623

WASHER

29

20T-06-41131

WIRE ASS'Y

30

20T-06-41170

WIRE ASS'Y

31

08073-00505

SWITCH

32

198-06-11940

SENSOR

33

22X-07-12270

CLIP

34

20R-06-11240

WIRE

35

08037-05022

GROMMET

36

08038-00519

CAP

37

08034-00519

BAND

38

08034-00414

BAND

39

08034-00519

BAND

40

08037-01008

GROMMET
