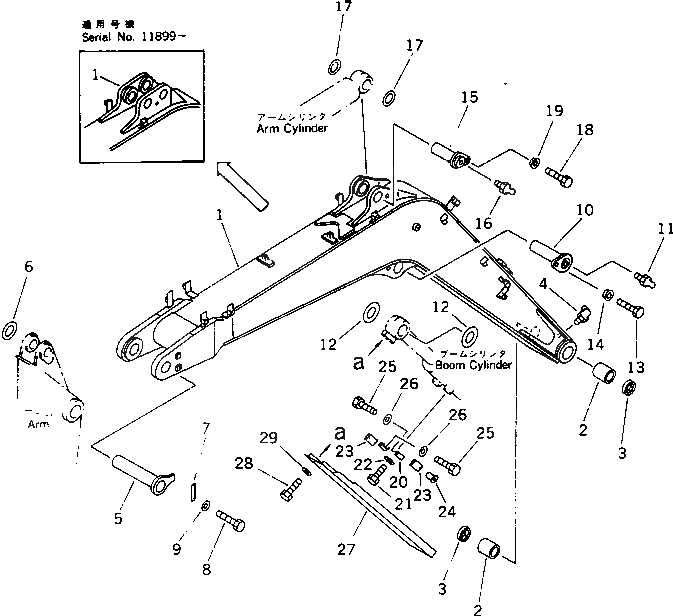

Запчасти Komatsu PC40-6 СТРЕЛА (ДЛЯ МОЛОТА И ATTCHMENT) РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

20T-970-X170

BOOM GROUP,(FOR BREAKER AND ATTACHMENT)

|$2

20T-970-0011

BOOM ASS'Y

|$3

20T-970-0010

BOOM ASS'Y

1

BOOM

1

BOOM

2

20T-70-41121

BUSHING

3

07145-00050

SEAL,DUST

4

07020-00675

FITTING,GREASE

G-2

20T-70-X1210

BOOM PIN GROUP

5

20T-70-41141

PIN

6

201-70-23140

SPACER, 1.0MM

7

20S-70-31240

PLATE

8

01010-51225

BOLT

9

01643-31232

WASHER

10

20T-70-41132

PIN

11

07020-00000

FITTING,GREASE

12

201-70-23140

SPACER, 1.0MM

13

01010-51635

BOLT

14

20T-70-41160

SPACER

15

20T-70-41151

PIN

16

07020-00000

FITTING,GREASE

17

20T-70-19130

SPACER, 1.0MM

18

01010-51635

BOLT

19

20T-70-41160

SPACER

G-3

20S-70-X1810

CYLINDER COVER GROUP

20

20U-70-11251

PLATE

20

20U-70-11250

PLATE

21

01010-50812

BOLT

22

01643-30823

WASHER

23

21X-70-11410

PAD

23

20U-70-11261

PAD

24

21X-70-11420

COLLAR

25

01010-50612

BOLT

26

01643-30623

WASHER

27

20T-70-41710

COVER

28

01010-51020

BOLT

29

01643-31032

WASHER
