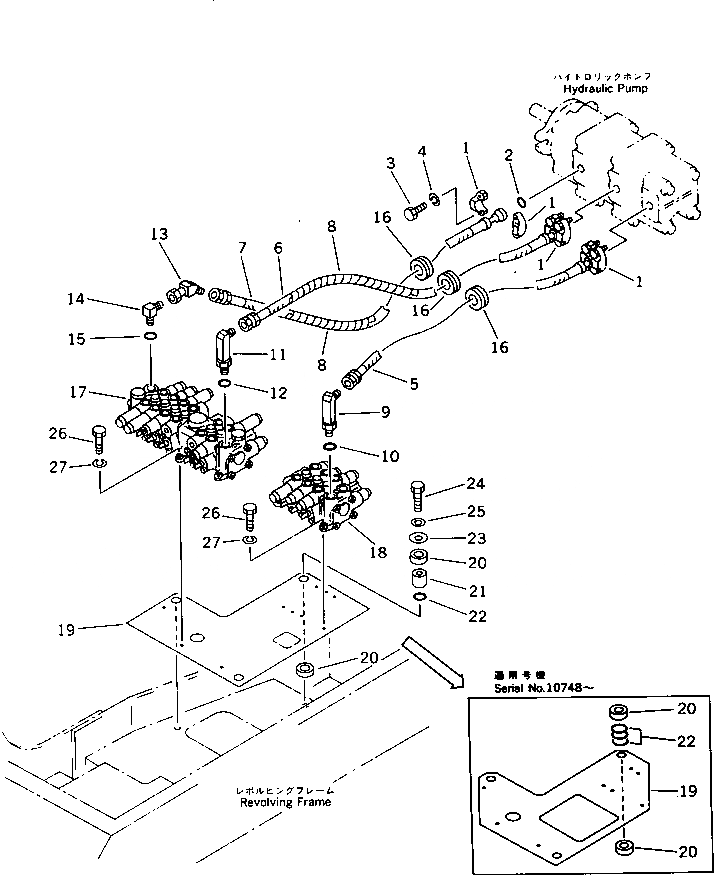

Запчасти Komatsu PC40-6 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) (ДЛЯ НАВЕСН. ОБОРУД.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

07371-30400

FLANGE

2

07000-12021

O-RING

3

01010-50830

BOLT

4

01602-20825

WASHER,SPRING

5

20T-62-66490

HOSE

5

20T-62-66220

HOSE

6

20T-62-66480

HOSE

6

20T-62-66210

HOSE

7

20T-62-66470

HOSE

7

20T-62-66190

HOSE

8

203-62-32440

COVER

9

20R-62-21520

ELBOW

10

07002-12034

O-RING

11

20R-62-21510

ELBOW

12

07002-12034

O-RING

13

20T-62-61230

TUBE

14

07235-10422

ELBOW

15

07002-12034

O-RING

16

08037-03614

GROMMET

17

709-36-12703

VALVE ASS'Y,(SEE FIG.6201)

17

709-36-12702

VALVE ASS'Y,(SEE FIG.6201)

17

709-36-12701

VALVE ASS'Y,(SEE FIG.6201)

G-1

20T-970-X150

HYDRAULIC UNIT GROUP,(FOR ATTACHMENT)

18

709-33-11902

VALVE ASS'Y,(SEE FIG.6211)

18

709-33-11901

VALVE ASS'Y,(SEE FIG.6211)

18

709-33-11900

VALVE ASS'Y,(SEE FIG.6211)

19

20S-60-35131

BRACKET

19

20S-60-35130

BRACKET

20

203-62-58360

CUSHION

20

203-62-42770

CUSHION

21

20X-62-21550

SPACER

22

07000-03025

O-RING

22

07000-03025

O-RING

23

566-35-42430

PLATE

24

01010-51250

BOLT

25

01643-31232

WASHER

26

01010-50825

BOLT

27

01602-20825

WASHER,SPRING
