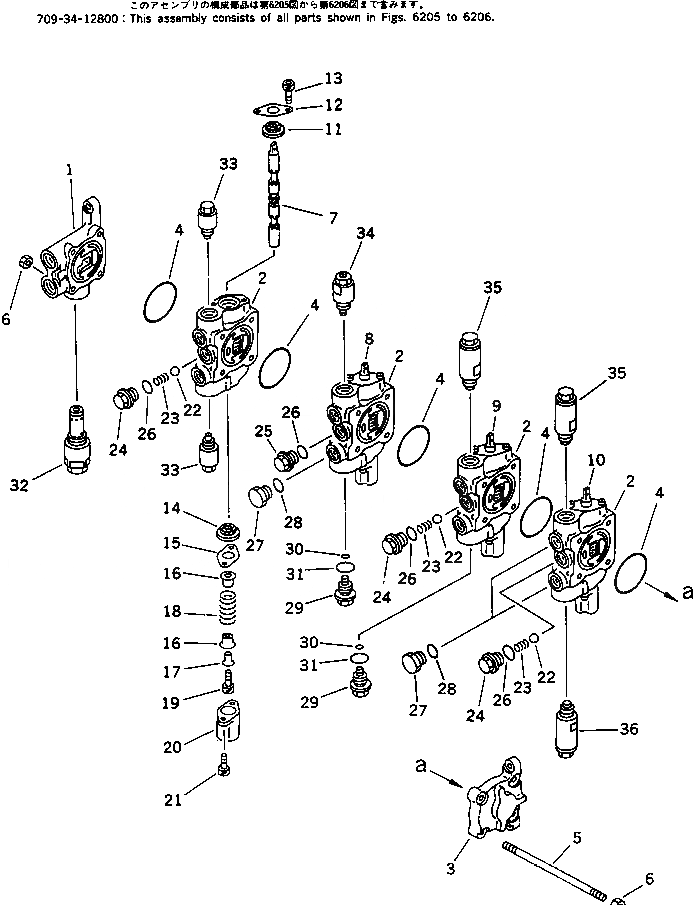

Запчасти Komatsu PC40-6 4-Х СЕКЦИОНН. КЛАПАН (/) (ПОВОРОТН.¤ СКОРОСТЬ ДВИЖЕНИЯ¤ ОТВАЛ¤ НАКЛОН.)(№899-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-34-12800

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

COVER

4

07000-12055

O-RING

5

700-25-11210

STUD

6

01580-10806

NUT

7

SPOOL,SWING

8

SPOOL,TRAVEL SPEED, BOOM SPEED

9

SPOOL,BLADE

10

SPOOL,TILT

11

709-32-11530

SEAL,DUST

12

709-32-11540

PLATE

13

01252-30610

BOLT

14

709-32-11530

SEAL

15

709-32-11540

PLATE

16

709-32-11550

RETAINER

17

709-32-11560

COLLAR

18

709-32-11580

SPRING

19

01252-30620

BOLT

20

709-32-11570

COVER

21

01252-30616

BOLT

22

04260-01270

BALL

23

709-32-11820

SPRING

24

709-32-11810

PLUG

25

709-32-11930

PLUG

26

07002-11823

O-RING

27

07040-11812

PLUG

28

07002-11823

O-RING

29

709-32-11830

PLUG

30

709-32-11840

O-RING

31

07002-02034

O-RING

32

700-28-51000

VALVE ASS'Y,RELIEF

33

709-30-61100

VALVE ASS'Y,SUCTION

34

709-30-65703

VALVE ASS'Y,SAFETY

35

709-30-64101

VALVE ASS'Y,SUCTION AND SAFETY

36

709-30-63702

VALVE ASS'Y,SAFETY
