Запчасти Komatsu PC40-6 6-СЕКЦИОНН. КЛАПАН (/) (РУКОЯТЬ¤ ХОД¤ КОВШ¤ СТРЕЛА¤ ПОВОРОТ СТРЕЛЫ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

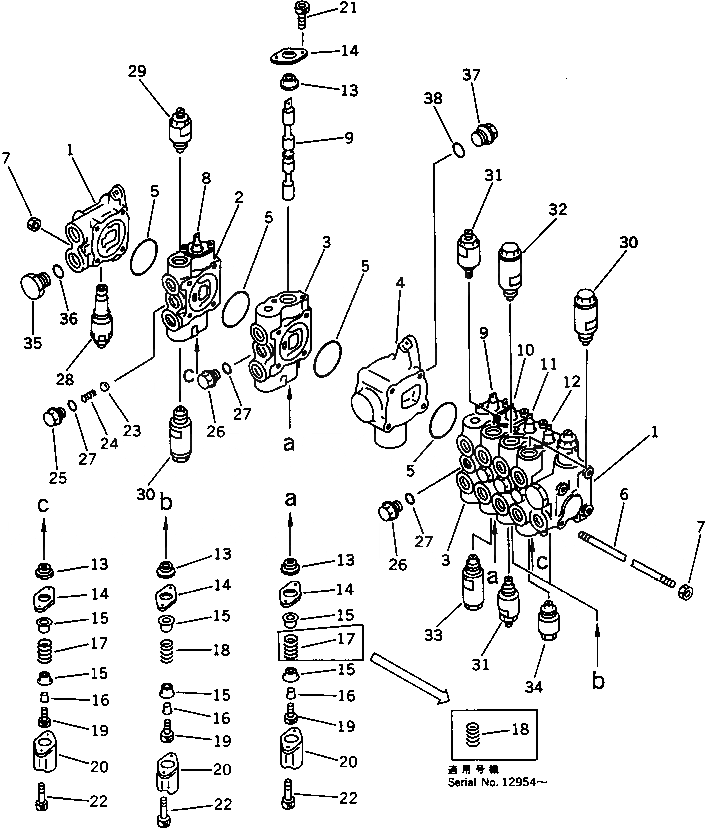

Схема запчастей Komatsu PC40-6 - 6-СЕКЦИОНН. КЛАПАН (/) (РУКОЯТЬ¤ ХОД¤ КОВШ¤ СТРЕЛА¤ ПОВОРОТ СТРЕЛЫ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

709-36-12704

VALVE ASS'Y

|$1

709-36-12703

VALVE ASS'Y

|$2

709-36-12702

VALVE ASS'Y

|$3

709-36-12701

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

07000-12055

O-RING

6

709-36-11510

STUD

7

01580-10806

NUT

8

SPOOL,ARM

9

SPOOL,TRAVEL

10

SPOOL,BUCKET

11

SPOOL,BOOM

12

SPOOL,BOOM SWING

13

709-32-11530

SEAL,DUST

14

709-32-11540

PLATE

15

709-32-11550

RETAINER

16

709-32-11560

COLLAR

17

709-32-11580

SPRING,(FOR ARM AND BOOM)

17

709-32-11580

SPRING,(FOR TRAVEL, ARM AND BOOM)

18

709-32-11590

SPRING,(FOR TRAVEL, BUCKET AND SWING)

18

709-32-11590

SPRING,(FOR BUCKET AND BOOM SWING)

19

01252-30620

BOLT

20

709-32-11570

COVER

21

01252-30610

BOLT

22

01252-30616

BOLT

23

04260-01270

BALL

24

709-32-11820

SPRING

25

709-32-11810

PLUG

26

709-32-11930

PLUG

27

07002-11823

O-RING

28

700-26-52000

VALVE ASS'Y,RELIEF

29

709-30-65800

VALVE ASS'Y,SAFETY

30

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

30

709-30-63201

VALVE ASS'Y,SUCTION AND SAFETY

30

709-30-63200

VALVE ASS'Y,SUCTION AND SAFETY

31

709-30-65900

VALVE ASS'Y,SAFETY

32

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY

32

709-30-63300

VALVE ASS'Y,SUCTION AND SAFETY

33

709-30-64500

VALVE ASS'Y,SUCTION AND SAFETY

33

709-30-62400

VALVE ASS'Y,SUCTION AND SAFETY

34

709-30-61100

VALVE ASS'Y,SUCTION

35

07040-12012

PLUG

36

07002-02034

O-RING

37

700-22-11370

PLUG

38

07002-02434

O-RING

Выбрано товаров: 48
