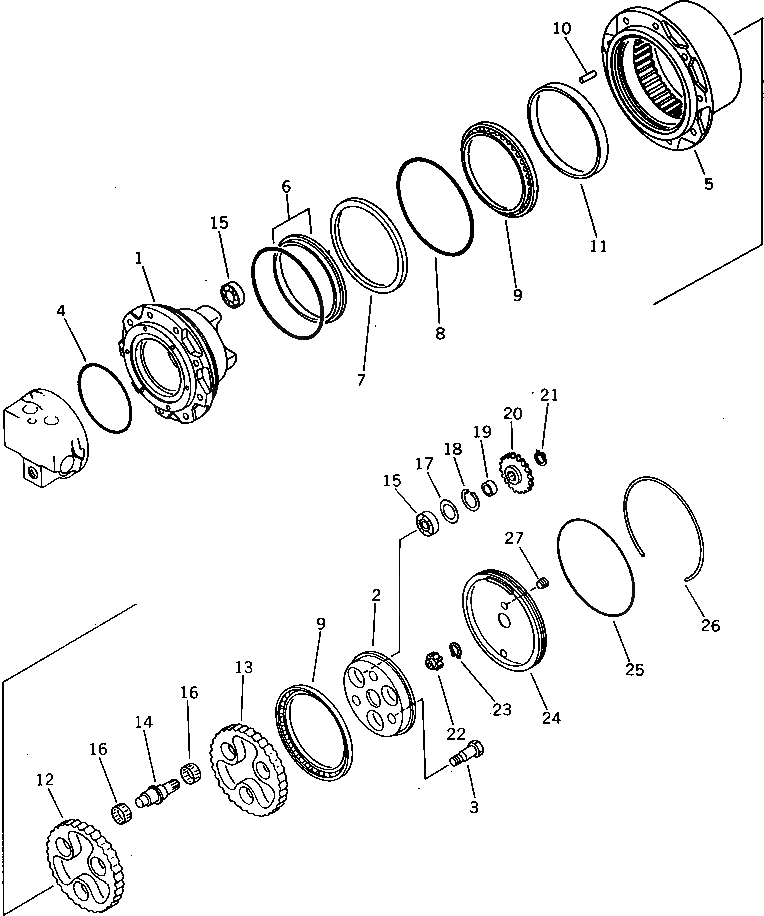

Запчасти Komatsu PC40-5 МОТОР ХОДА (/) (УСИЛЕНН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

20T-60-32300

TRAVEL MOTOR ASS'Y

|$1

TZ300B1000-00

FINAL DRIVE ASS'Y

|$2

TZ300B1102-01

SPINDLE KIT

|$3

TZ300B1132-01

SPINDLE ASS'Y

1

SPINDLE

2

FLANGE,HOLD

3

TZ300B1019-00

BOLT,REAMER

4

07000-12130

O-RING (KIT)

5

HUB

6

TZES100-150-A

SEAL,FLOATING (KIT)

7

TZ300A1010-00

PIECE,DISTANCE

8

07000-15180

O-RING (KIT)

9

TZ300A1021-00

BEARING,BALL

10

TZ300A1017-00

PIN

11

TZ300B1020-00

COLLAR

|$15

TZ300B1104-02

GEAR ASS'Y

|$16

TZ300B1204-02

GEAR KIT

12

GEAR

13

GEAR

14

TZ300A1009-00

CRANKSHAFT

15

TZ300A1022-00

BEARING,ROLLER

16

TZ300A1023-00

BEARING,ROLLER

17

TZ300A1013-00

PIECE,DISTANCE

18

04065-04218

RING,SNAP

19

TZ300A1014-00

PIECE,DISTANCE

20

TZ300B1107-00

SPUR GEAR ASS'Y

20

GEAR

21

04064-02012

RING,SNAP

22

TZ300B1006-00

GEAR,INPUT

23

04064-01410

RING,SNAP

24

TZ300A1008-00

COVER

25

TZJW1516-G40-9

O-RING (KIT)

26

TZ300A1018-00

RING

27

TZGM3-8

PLUG

|$35

TZ305B9000-00

SEAL KIT

|$36

TZJB2401-P22-9

O-RING

|$37

07000-12012

O-RING

|$38

TZ15Z-17-35-8

SEAL,OIL

|$39

07000-12020

O-RING

|$40

07000-12130

O-RING

|$41

TZES100-150-A

SEAL,FLOATING

|$42

07000-15180

O-RING

|$43

TZJW1516-G40-9

O-RING
