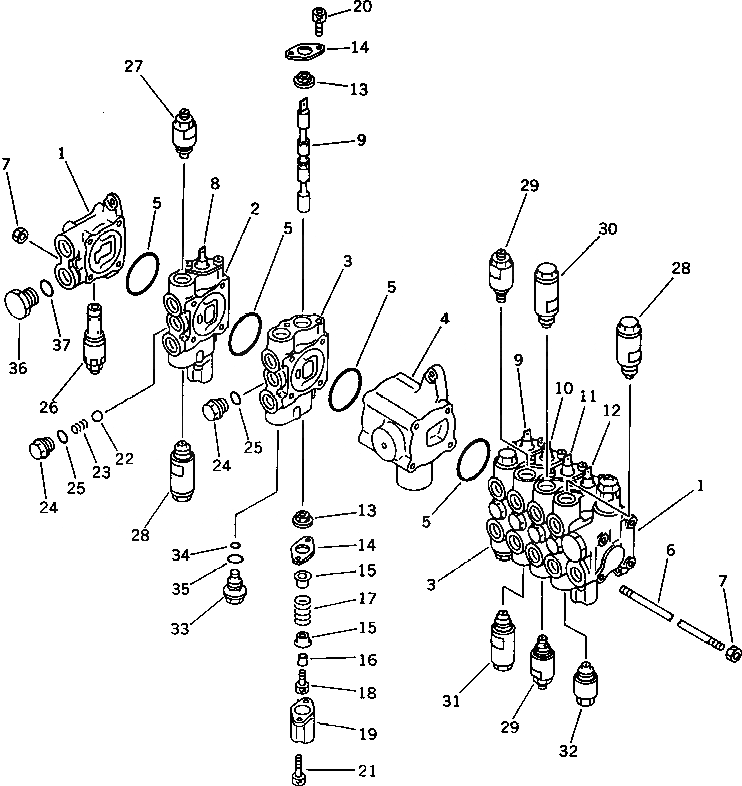

Запчасти Komatsu PC40-5 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-36-11701

VALVE ASS'Y

|$1

709-36-00010

VALVE SUB ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

O-RING

6

STUD

7

NUT

8

SPOOL,ARM

9

SPOOL,TRAVEL

10

SPOOL,BUCKET

11

SPOOL,BOOM

12

SPOOL,BOOM SWING

13

709-32-11530

SEAL,DUST

14

709-32-11540

PLATE

15

709-32-11550

RETAINER

16

709-32-11580

SPRING

17

709-32-11590

SPRING

18

01252-30620

BOLT

19

709-32-11570

COVER

20

01252-30610

BOLT

21

01252-30616

BOLT

22

04260-01270

BALL

23

709-32-11820

SPRING

24

709-32-11810

PLUG

25

07002-11823

O-RING

26

700-26-52000

VALVE ASS'Y,RELIEF

27

709-30-65800

VALVE ASS'Y,SUCTION AND SAFETY

28

709-30-63200

VALVE ASS'Y,SAFETY

29

709-30-65900

VALVE ASS'Y,SAFETY

30

709-30-63300

VALVE ASS'Y,SUCTION AND SAFETY

31

709-30-62400

VALVE ASS'Y,SUCTION AND SAFETY

32

709-30-61100

VALVE ASS'Y,SUCTION

33

709-32-11830

PLUG

34

709-32-11840

O-RING

35

07002-02034

O-RING

36

07040-12012

PLUG

37

07002-02034

O-RING
