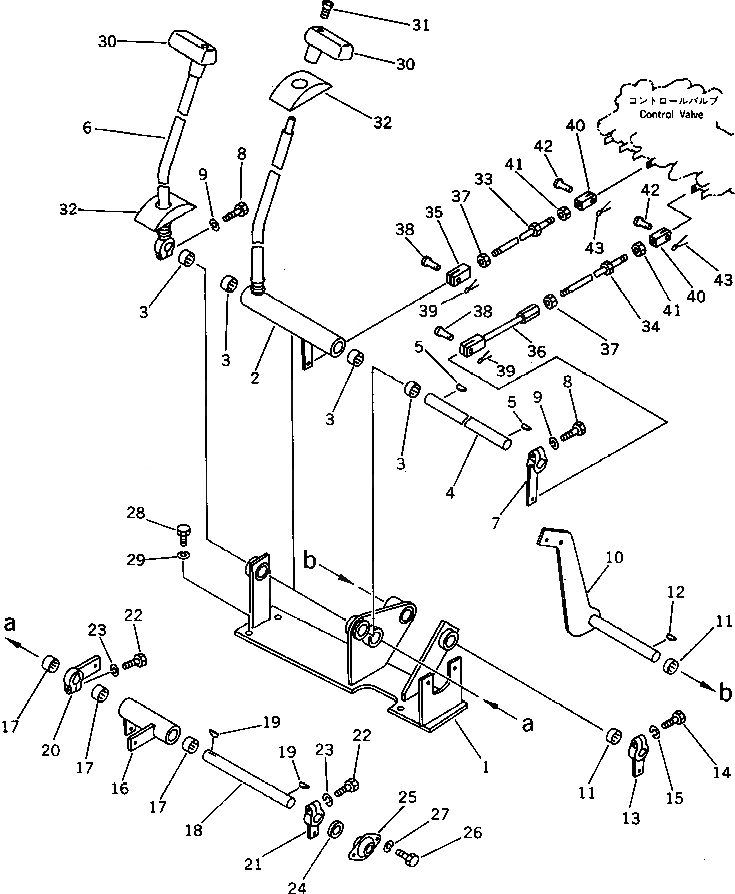

Запчасти Komatsu PC40-5 РЫЧАГ УПРАВЛ-Я ХОДОМ СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

|$0

20T-43-00160

BRACKET ASS'Y

1

20T-43-31211

BRACKET

2

20S-43-21110

LEVER,L.H.

3

195-61-34130

BEARING

4

20S-43-21190

SHAFT

5

04010-00519

KEY

6

20S-43-21120

LEVER,R.H.

7

20S-43-21141

LEVER

8

01010-50830

BOLT

9

01602-20825

WASHER,SPRING

10

20T-43-31251

LEVER

11

195-61-34130

BEARING

12

04010-00519

KEY

13

20T-43-31290

LEVER

14

01010-50830

BOLT

15

01602-20825

WASHER,SPRING

16

20T-43-31231

LEVER

17

195-61-34130

BEARING

18

20T-43-31242

SHAFT

19

04010-00519

KEY

20

20T-43-31380

LEVER

21

20S-43-21530

LEVER

22

01010-50830

BOLT

23

01602-20825

WASHER,SPRING

24

20T-43-31320

SPACER

25

20T-43-31310

BEARING

26

01010-50816

BOLT

27

01602-20825

WASHER,SPRING

28

01010-51025

BOLT

29

01602-21030

WASHER,SPRING

30

203-43-41340

KNOB

31

01225-40625

SCREW

32

20S-43-11230

COVER

33

04248-31021

ROD

33

04248-31020

ROD

34

04248-31020

ROD

35

20S-43-12150

YOKE,L.H. THREAD

36

20T-43-31350

ROD

37

01508-21006

NUT,L.H. THREAD

38

04205-10822

PIN

39

04050-12012

PIN,COTTER

40

20S-43-21570

YOKE

41

01582-11008

NUT

42

04205-10520

PIN

43

04050-11210

PIN,COTTER
