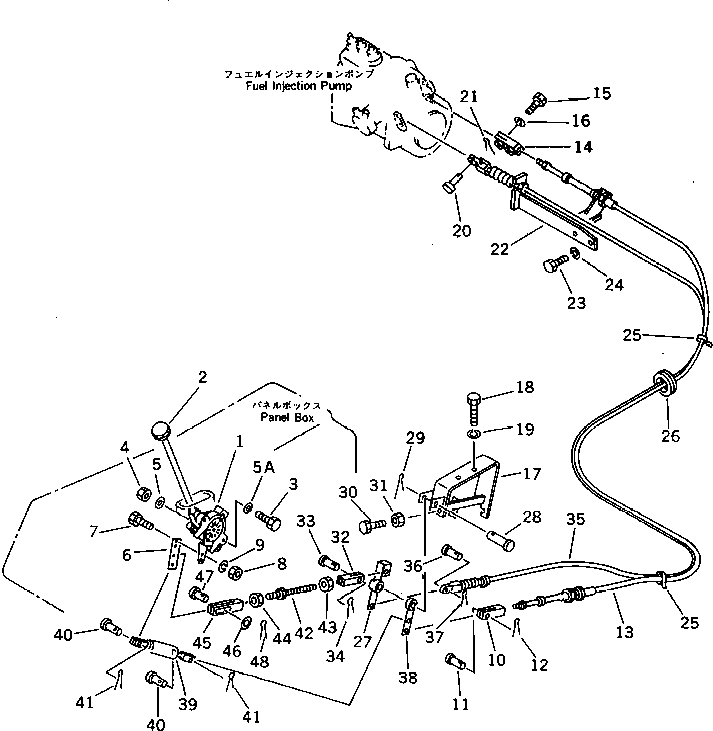

Запчасти Komatsu PC40-5 РЫЧАГ УПРАВЛ-Я ПОДАЧЕЙ ТОПЛИВА И МЕХАНИЗМ СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20T-43-32311

LEVER ASS'Y

1

20T-43-32310

LEVER ASS'Y

2

20R-43-11280

KNOB

3

01010-51030

BOLT

4

01580-11008

NUT

5

01643-31032

WASHER

5A

01643-31032

WASHER

6

20T-43-32262

PLATE

6

20T-43-32261

PLATE

7

01010-50616

BOLT

8

01580-10605

NUT

9

01602-20619

WASHER,SPRING

10

20T-43-12160

YOKE

11

04205-10618

PIN

12

04050-11610

PIN,COTTER

13

20T-43-32330

CABLE

14

20T-43-32230

YOKE

15

01010-50620

BOLT

16

01602-20619

WASHER,SPRING

17

20T-43-32251

BRACKET

18

01010-51025

BOLT

19

01643-31032

WASHER

19

01602-21030

WASHER,SPRING

20

04205-10616

PIN

21

04050-11610

PIN,COTTER

22

20T-43-32240

BRACKET

23

01010-51040

BOLT

24

01602-21030

WASHER,SPRING

25

08034-00310

BAND

26

08037-03614

GROMMET

27

20T-43-32350

LEVER

28

430-44-22220

PIN

29

04050-14028

PIN,COTTER

30

01010-51020

BOLT

31

01580-11008

NUT

32

04221-20634

YOKE

33

04205-10618

PIN

34

04050-11612

PIN,COTTER

35

20T-43-32281

CABLE,ENGINE STOP

36

04205-10616

PIN

37

04050-11610

PIN,COTTER

38

20T-43-32340

LEVER

39

20T-43-32320

SPRING,LOOSE

40

04205-10618

PIN

41

04050-11612

PIN,COTTER

42

04248-20610

ROD

43

01508-20603

NUT

44

01508-10603

NUT, L.H. THREAD

45

175-43-83920

YOKE

46

01641-20608

WASHER

47

04205-10620

PIN

48

04050-11612

PIN,COTTER
