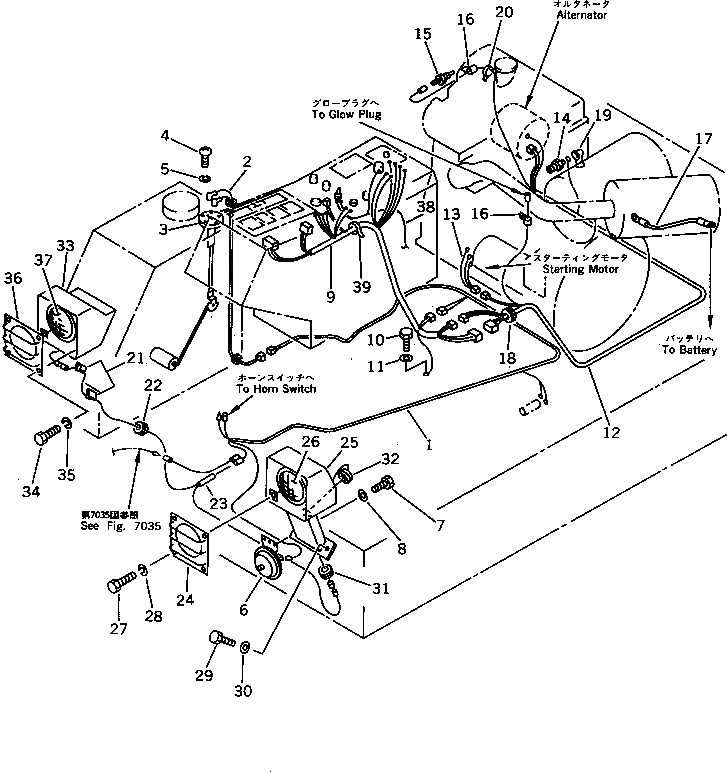

Запчасти Komatsu PC40-5 ЭЛЕКТРИКА (TBG СПЕЦ-Я) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20T-06-31510

WIRE ASS'Y

2

20T-06-31180

WIRE

3

20T-06-31110

FLOAT

4

01220-40408

SCREW

5

01602-20410

WASHER,SPRING

6

08160-41200

HORN

7

01010-50816

BOLT

8

01602-20825

WASHER,SPRING

9

20T-06-31120

WIRE ASS'Y

10

01010-51016

BOLT

11

01642-01016

WASHER

12

20T-06-31130

WIRE ASS'Y

13

20T-06-31170

WIRE ASS'Y

14

08073-00505

SWITCH,OIL PRESSURE

15

198-06-11940

SENSOR,WATER TEMPERATURE

16

22X-07-12270

CLIP

17

20R-06-11240

WIRE

18

08037-05022

GROMMET

19

08038-00519

CAP

20

08034-00519

BAND

21

203-06-21150

CLIP

22

08037-01601

GROMMET

23

20S-06-21540

WIRE

24

20S-06-21530

COVER

25

20S-06-21510

BRACKET

26

20S-06-21560

LAMP

27

01010-51020

BOLT

28

01602-21030

WASHER,SPRING

29

01010-31020

BOLT

30

01602-51030

WASHER,SPRING

31

08037-01610

GROMMET

32

08037-01008

GROMMET

33

20S-06-21520

BRACKET

34

01010-51020

BOLT

35

01602-21030

WASHER,SPRING

36

20S-06-21530

COVER

37

20S-06-21560

LAMP

38

20S-06-21330

WIRE ASS'Y

39

08034-00414

BAND
