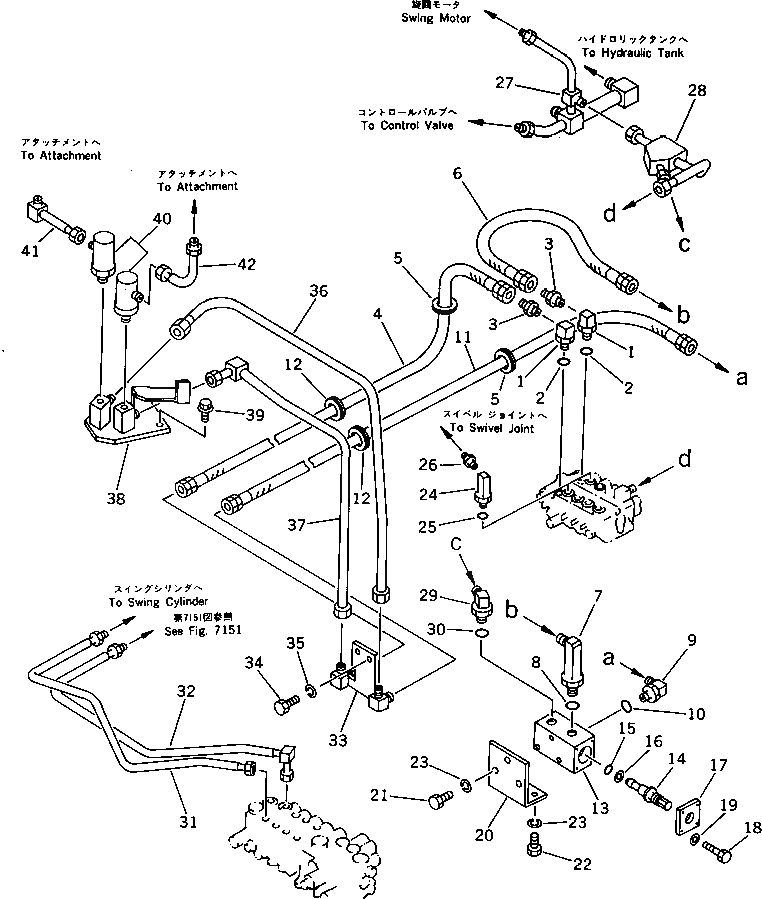

Запчасти Komatsu PC40-5 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) (ДЛЯ НАВЕСН. ОБОРУД.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

G-1

20T-973-X190

PIPING GROUP,(FOR ATTACHMENT)

1

20S-973-5280

TEE

2

07002-11823

O-RING

3

237-60-14550

NIPPLE

4

20T-62-56161

HOSE

5

08037-03614

GROMMET

6

20S-62-21510

HOSE

7

20R-62-21510

ELBOW

8

07002-12034

O-RING

9

20S-62-11310

ELBOW

10

07002-21434

O-RING

11

20T-61-61920

HOSE

12

08037-03614

GROMMET

G-2

20T-973-X169

VALVE ASS'Y,3-WAY (FOR ATTACHMENT)

|$17

20T-973-0050

VALVE ASS'Y,3-WAY

13

20T-973-2620

BODY

14

20T-973-2630

SPOOL

15

07000-12018

O-RING

16

07001-02018

RING,BACK-UP

17

20T-973-2640

PLATE

18

01010-50820

BOLT

19

01602-20825

WASHER,SPRING

G-3

20T-973-X130

REVOLVING FRAME G.,(FOR ATTACHMENT)

20

20S-973-2160

BRACKET

21

01010-51020

BOLT

22

01010-51025

BOLT

23

01602-21030

WASHER

G-4

20T-973-X180

PIPING GROUP,(FOR ATTACHMENT)

24

20S-973-2590

ELBOW

25

07002-11823

O-RING

26

176-62-15490

NIPPLE

27

20T-973-4450

TUBE

28

20T-973-4460

TUBE

29

201-936-7520

ELBOW

30

07002-02434

O-RING

31

20T-973-4410

TUBE

32

20T-973-4420

TUBE

G-5

20T-973-X210

SWIVEL JOINT GROUP,(FOR ATTACHMENT)

33

20T-973-4510

BRACKET

34

01010-51030

BOLT

35

01602-21030

WASHER,SPRING

36

20T-973-4520

TUBE

37

20T-973-4530

TUBE

38

20T-973-4540

BRACKET

39

01010-51245

BOLT

40

07129-10400

JOINT

41

20T-973-4550

TUBE

42

20T-973-4560

TUBE
