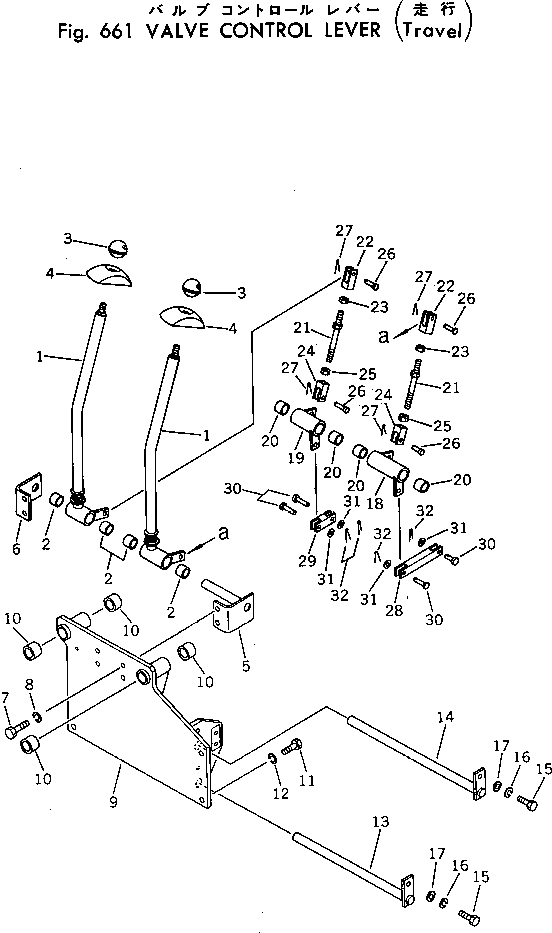

Запчасти Komatsu PC40-3 КЛАПАН РЫЧАГ УПРАВЛ-Я (ХОД) ГИДРАВЛИКА

1

20S-43-11210

LEVER,L.H.

1

20S-43-11220

LEVER,R.H.

2

09350-02220

BUSHING

3

20R-43-11280

KNOB

4

20S-43-11230

COVER

5

20S-43-11260

SHAFT

6

20S-03-11270

COLLAR

7

01010-31030

BOLT

8

01602-01030

WASHER,SPRING

9

20S-43-11280

BRACKET

10

09350-02225

BUSHING

11

01010-31030

BOLT

12

01602-01030

WASHER,SPRING

13

20S-43-11290

SHAFT

14

20S-43-11310

SHAFT

15

01010-31025

BOLT

16

01602-01030

WASHER,SPRING

17

01643-31032

WASHER

18

20S-43-11320

LEVER,L.H.

19

20S-43-11330

LEVER,R.H.

20

09350-02220

BUSHING

21

04248-30811

ROD

22

04210-20832

YOKE

23

01580-10806

NUT

24

04220-20832

YOKE

25

01508-20805

NUT,L.H. THREAD

26

04205-10822

PIN

27

04050-12012

PIN,COTTER

28

20S-43-11340

YOKE

29

20S-43-11350

YOKE

30

04205-10622

PIN

31

01641-20608

WASHER

32

04050-11610

PIN,COTTER
