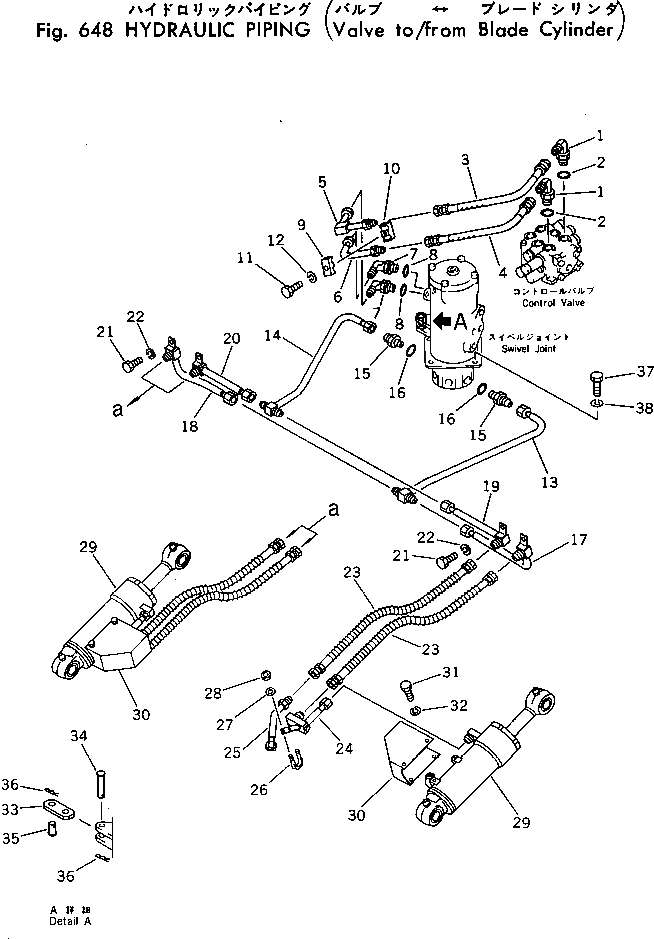

Запчасти Komatsu PC40-3 ГИДРОЛИНИЯ (КЛАПАН TO/FROM ЦИЛИНДР ОТВАЛА) ГИДРАВЛИКА

1

20T-62-57110

ELBOW

2

07002-11823

O-RING

3

07108-20304

HOSE

4

20T-62-56120

HOSE

5

20T-62-57120

TUBE

6

20T-62-57130

TUBE

7

07235-10315

ELBOW

8

07002-12034

O-RING

9

20T-62-12860

CLAMP

10

20S-62-11680

CLAMP

11

01010-51030

BOLT

12

01602-21030

WASHER,SPRING

13

20T-62-57511

TUBE

14

20T-62-57521

TUBE

15

07230-10315

UNION

16

07002-12034

O-RING

17

20T-62-57531

TUBE

18

20T-62-57541

TUBE

19

20T-62-57560

TUBE

20

20T-62-57570

TUBE

21

01010-51025

BOLT

22

01602-21030

WASHER,SPRING

23

07109-20306

HOSE

23

07123-20306

HOSE,(TBG SPEC.)

24

20T-62-57590

TUBE

25

20T-62-57580

TUBE

26

07283-21022

CLIP

27

01643-30623

WASHER

28

01598-00608

NUT

29

20T-63-96100

CYLINDER ASS'Y

30

20T-62-57551

COVER

31

01010-51016

BOLT

32

01602-21030

WASHER,SPRING

33

20T-60-14110

PLATE

34

201-60-11230

PIN

35

04205-11632

PIN

36

04052-01664

PIN,SNAP

37

01010-51230

BOLT

38

01602-21236

WASHER,SPRING
