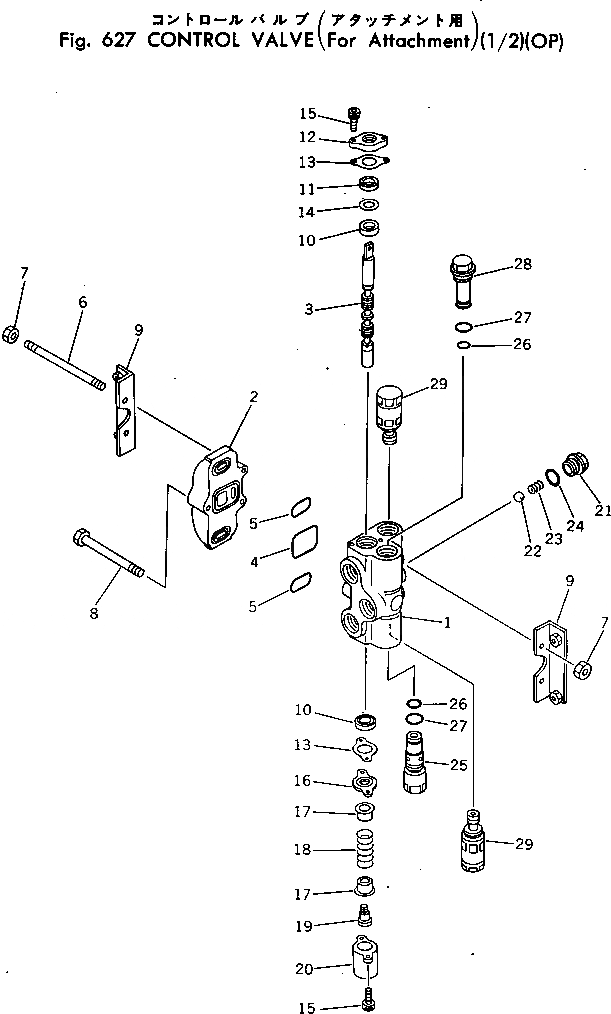

Запчасти Komatsu PC40-3 УПРАВЛЯЮЩ. КЛАПАН ДЛЯ НАВЕСН. ОБОРУД (/) ГИДРАВЛИКА

|$0

700-21-44000

VALVE ASS'Y

|$2

700-21-00010

BODY ASS'Y

1

BODY,VALVE

2

COVER

3

SPOOL

4

07000-13040

O-RING

5

700-22-11450

O-RING

6

700-21-11110

STUD

7

01580-10806

NUT

8

700-21-11120

BOLT

9

700-26-11170

ANGLE

10

700-22-11252

U-PACKING

11

700-22-11261

SEAL,DUST

12

700-22-11270

PLATE

13

700-22-11420

GASKET

14

700-22-11430

COLLAR

15

01252-30616

BOLT

16

700-22-11281

PLATE

17

700-22-11290

RETAINER

18

700-22-11311

SPRING

19

700-22-11320

PLUG

20

700-22-11331

COVER

21

700-22-11351

PLUG

22

700-22-12340

BALL

23

700-22-12350

SPRING

24

07002-12434

O-RING

25

700-22-11380

PLUG

26

07000-12014

O-RING

27

07002-02434

O-RING

28

700-26-11150

PLUG

29

700-20-66001

VALVE ASS'Y,SUCTION AND SAFETY
