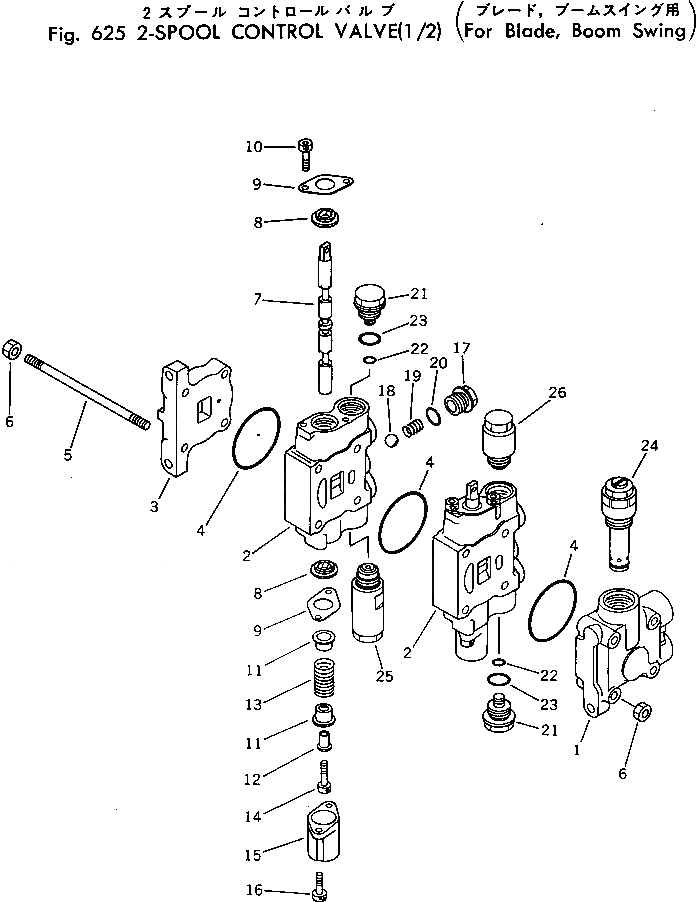

Запчасти Komatsu PC40-3 2-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) (ДЛЯ ОТВАЛ¤СТРЕЛА¤ПОВОРОТН.) ГИДРАВЛИКА

|$0

709-32-11200

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

COVER

4

07000-12055

O-RING

5

709-32-11510

STUD

6

01580-10806

NUT

7

SPOOL

8

709-32-11530

SEAL

9

709-32-11540

PLATE

10

01252-30610

BOLT

11

709-32-11550

RETAINER

12

709-32-11560

COLLAR

13

709-32-11580

SPRING

14

01252-30620

BOLT

15

709-32-11570

COVER

16

01252-30616

BOLT

17

709-32-11810

PLUG

18

04260-01270

BALL

19

709-32-11820

SPRING

20

07002-11823

O-RING

21

709-32-11830

PLUG

22

709-32-11840

O-RING

23

07002-02034

O-RING

24

700-23-58001

VALVE ASS'Y,MAIN RELIEF

25

709-30-62300

VALVE ASS'Y,SUCTION AND RELIEF

26

709-30-61100

VALVE ASS'Y,SUCTION
