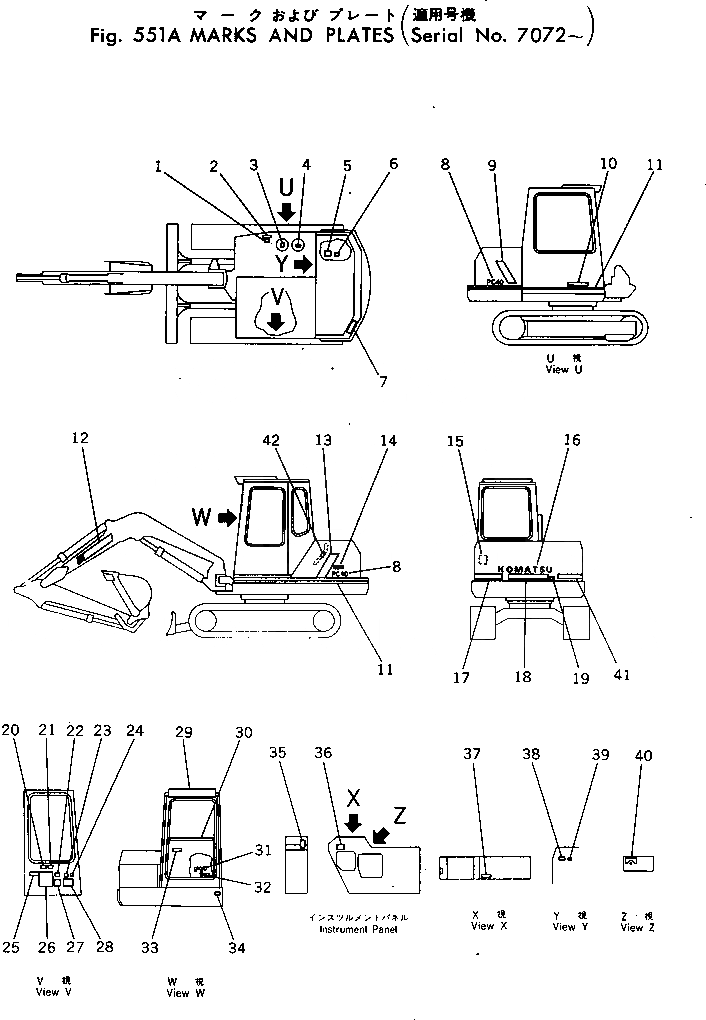

Запчасти Komatsu PC40-3 МАРКИРОВКА(№77-) ОСНОВНАЯ РАМА И КАБИНА

1

09652-01101

PLATE, CAUTION,DRAIN

2

09101-00100

PLATE, INSTRUCTION,RECOMMENDED FUEL OIL

3

20T-98-21250

PLATE, CAUTION,HYDRAULIC OIL FILTER

4

09656-01080

PLATE, INSTRUCTION,HYDRAULIC TANK STRAINER

5

09650-01103

PLATE, INSTRUCTION,RADIATOR

6

09668-00100

PLATE, SAFETY,RADIATOR CAP

7

20R-98-21130

PLATE, SAFETY,KEEP OUT OF TURNING AREA

8

20T-98-21310

PLATE, MARK,PC40

9

20T-98-21330

PLATE, STRIPE,ZEBRA

10

09690-40315

PLATE, MARK,KOMATSU

11

20S-98-21410

PLATE, STRIPE,WHITE LINE

12

20S-98-21151

PLATE, MARK,KOMATSU

13

20T-98-21320

PLATE, STRIPE,ZEBRA

14

09694-50160

PLATE, MARK,SYMBOL

15

09641-00661

PLATE, INSTRUCTION,AIR CLEANER

16

09690-51250

PLATE, MARK,KOMATSU

17

20T-98-21350

PLATE, STRIPE

18

20T-98-21360

PLATE, STRIPE

19

09667-00100

PLATE, SAFETY,ENGINE COVER

19A

20T-98-21340

PLATE, STRIPE

20

20T-98-21210

PLATE, OPERATING

21

20S-98-11250

PLATE, CAUTION,TRAVEL HIGH PEDAL

22

09132-00100

PLATE, SAFETY,WARNING

23

09173-00100

PLATE, SAFETY,INSPECTION AND MAINTENANCE

24

09651-00100

PLATE, SAFETY,BEFORE OPERATING

25

09657-00110

PLATE, SAFETY,TRACK SHOE

26

20T-98-21141

CHART, OIL,OIL

27

20T-98-21151

PLATE, DATA

28

20R-54-15391

PLATE, CAUTION,TRACK LOADING INSTRUCTION

29

20T-98-21190

PLATE, MARK,KOMATSU

30

20T-98-21230

PLATE, CAUTION

31

09685-00002

PLATE, OPERATING,SWING LOCK

32

09131-00100

PLATE, SAFETY,SWING LOCK LEVER

33

20S-98-11240

PLATE, OPERATING,INSTRUCTION

34

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

34

04418-13060

SCREW

35

20T-98-21130

PLATE, OPERATING,SWING LEVER

36

09670-00002

PLATE, OPERATING,BLADE

37

20T-54-13140

PLATE, OPERATING,ENGINE CONTROL

38

203-00-21190

PLATE, INSTRUCTION,RECOMMENDED HYDRAULIC OIL

39

09653-00100

PLATE, SAFETY,HYDRAULIC TANK CAP

40

09683-01060

PLATE, OPERATING,STARTING SWITCH

41

20T-98-21340

PLATE, STRIPE

42

20T-98-21240

PLATE, OPERATING,MACHINE CAB LOCK
