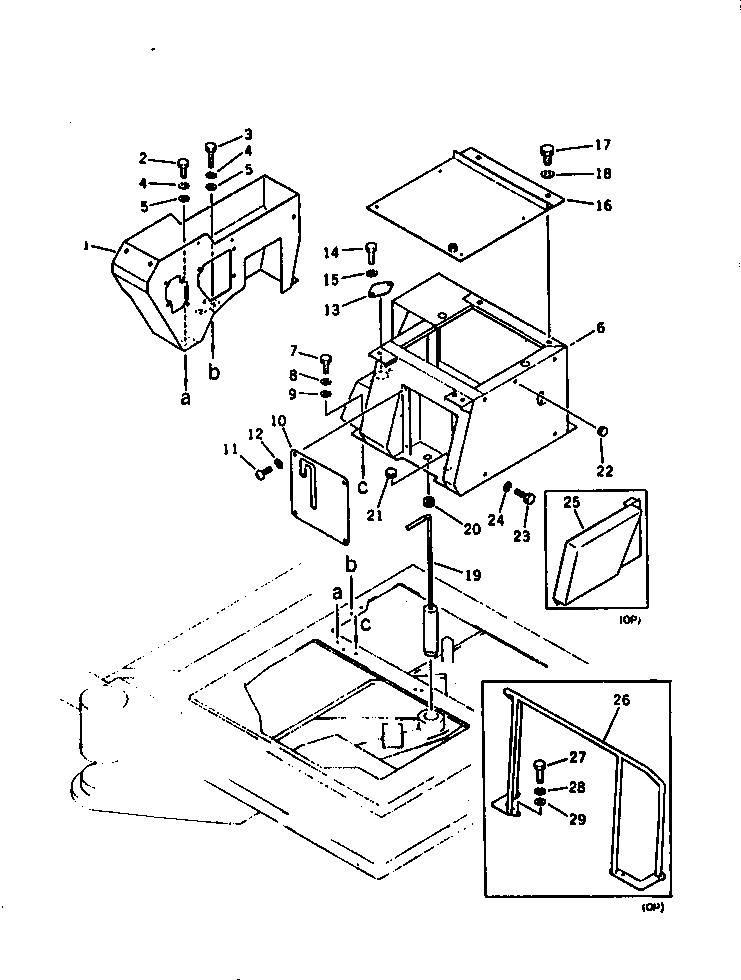

Запчасти Komatsu PC40-3 КАБИНА (ПАНЕЛЬ КОРПУС И СИДЕНЬЕ КОРПУС) ОСНОВНАЯ РАМА И КАБИНА

1

20T-54-26150

BOX,PANEL

1

20S-54-12160

BOX,PANEL

2

01010-51025

BOLT

3

01010-51035

BOLT

4

01602-21030

WASHER,SPRING

5

01643-31032

WASHER

6

20T-54-26160

BOX

6

20S-54-12171

BOX

7

01010-51025

BOLT

8

01602-21030

WASHER,SPRING

9

01643-31032

WASHER

10

20T-54-26111

PLATE

10

20T-54-26110

PLATE

11

01220-40616

SCREW

12

01602-20619

WASHER,SPRING

13

20T-54-26121

PLATE

13

20T-54-26120

PLATE

14

01010-50620

BOLT

15

01602-20619

WASHER,SPRING

16

20T-54-26590

COVER

16

20S-54-12180

COVER

17

01010-51225

BOLT

18

01602-21236

WASHER,SPRING

19

20T-54-26140

PIN

20

08037-01610

GROMMET

21

09415-01610

CAP

22

09415-00706

CAP

23

01010-51025

BOLT

23

01010-51025

BOLT,(WITHOUT CAB) (OP)

24

01602-21030

WASHER,SPRING

24

01602-21030

WASHER,SPRING (WITHOUT CAB) (OP)

25

20T-54-28250

COVER,(WITHOUT CAB) (OP)

26

20S-54-12410

HANDRAIL,(WITHOUT CAB) (OP)

27

01010-51025

BOLT,(WITHOUT CAB) (OP)

28

01602-21030

WASHER,SPRING (WITHOUT CAB) (OP)

29

01643-31032

WASHER,(WITHOUT CAB) (OP)
