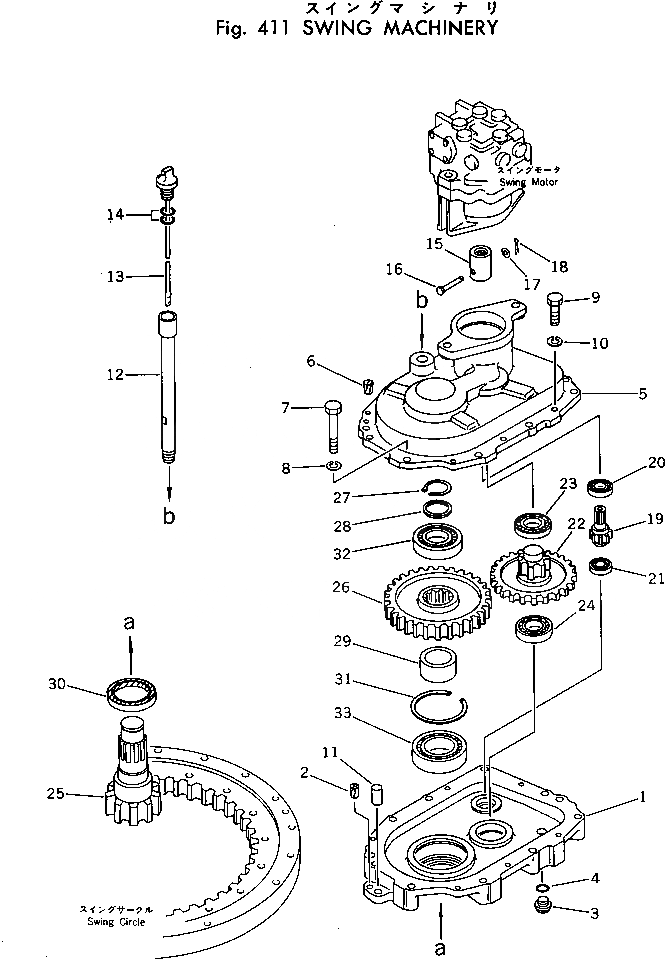

Запчасти Komatsu PC40-3 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. СИСТЕМА

|$0

20T-26-00050

CASE ASS'Y,LOWER

1

CASE

2

07049-01215

PLUG

3

07044-12412

PLUG

4

07002-02434

O-RING

|$5

20T-26-00060

CASE ASS'Y,UPPER

5

CASE

6

07049-01215

PLUG

7

01010-31290

BOLT

8

01602-01236

WASHER,SPRING

9

01010-31035

BOLT

10

01602-01030

WASHER,SPRING

11

04020-01434

PIN,DOWEL

12

20T-26-13610

FILLER

13

20T-26-13620

GAUGE,OIL LEVEL

14

07000-03022

O-RING

15

20T-26-11210

COUPLING

16

20T-26-11220

PIN

17

01641-20608

WASHER

18

04050-11610

PIN,COTTER

19

20T-26-13210

SHAFT

20

06044-00205

BEARING

21

06040-06204

BEARING

22

20T-26-13310

GEAR

23

06044-00207

BEARING,ROLLER

24

06040-06207

BEARING

25

20T-26-13410

SHAFT

26

20T-26-11820

GEAR

27

04064-04518

RING,SNAP

28

20T-26-11430

COLLAR

29

20T-26-13420

COLLAR

30

07012-00075

SEAL,OIL

31

04071-00110

RING,SNAP

32

06044-00309

BEARING

33

06030-22212

BEARING
