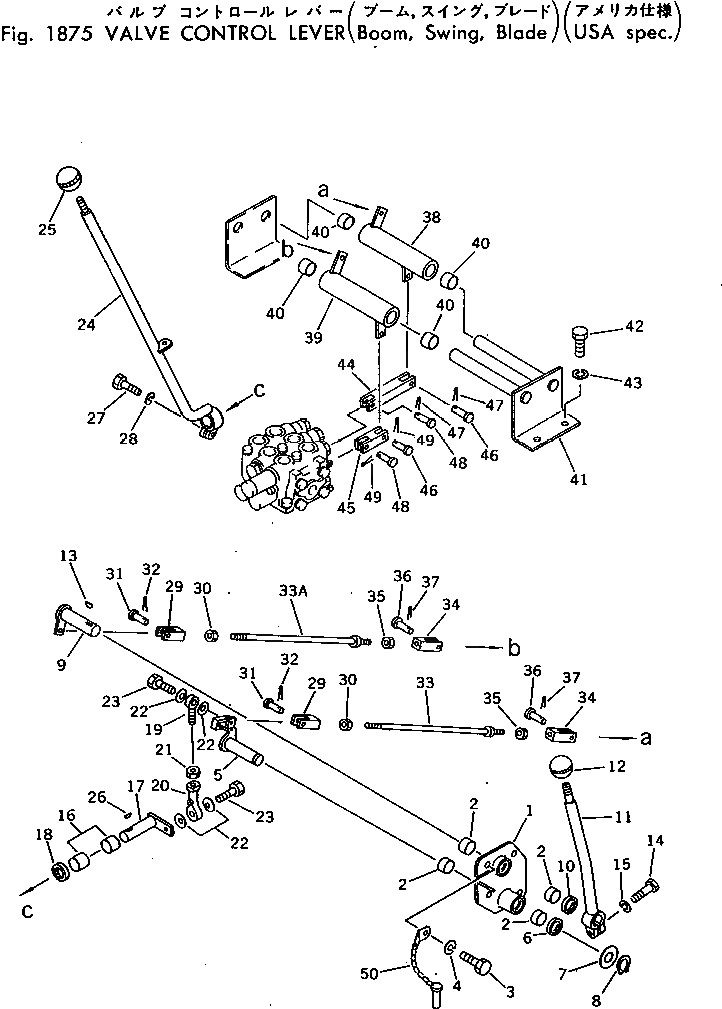

Запчасти Komatsu PC40-3 КЛАПАН РЫЧАГ УПРАВЛ-Я (СТРЕЛА¤ПОВОРОТН.¤ОТВАЛ) (США СПЕЦ-Я.) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20S-43-12110

BRACKET

2

09350-02020

BUSHING

3

113-B44-1230

BOLT

4

01602-01030

WASHER,SPRING

5

20S-43-15131

LEVER

6

01622-02004

SEAL

7

01643-32060

WASHER

8

04064-02012

RING,SNAP

9

20S-43-12220

LEVER

10

06122-02004

SEAL

11

20S-43-12210

LEVER

12

20R-43-11280

KNOB

13

04010-00519

KEY

14

01010-50830

BOLT

15

01602-20825

WASHER,SPRING

16

09350-02020

BUSHING

17

20S-43-15120

LEVER

18

06122-02004

SEAL

19

04252-01061

END,ROD

20

04250-41056

END,ROD

21

01582-11008

NUT

22

04245-01032

ROD

23

01010-51035

BOLT

24

20S-43-15110

LEVER

25

20R-43-11290

KNOB

26

04010-00519

KEY

27

01010-50830

BOLT

28

01602-20825

WASHER,SPRING

29

20S-43-12150

YOKE,L.H. THREAD

30

01508-21006

NUT, L.H. THREAD,L.H. THREAD

31

04205-10822

PIN

32

04050-12012

PIN,COTTER

33

04248-31045

ROD

33A

04248-31046

ROD

34

20T-43-22210

YOKE

35

01582-11008

NUT

36

04205-10822

PIN

37

04050-12012

PIN,COTTER

38

20T-43-22320

LEVER

39

20T-43-22340

LEVER

40

09350-02220

BUSHING

41

20T-43-22311

SHAFT

42

01010-51025

BOLT

43

01602-21030

WASHER,SPRING

44

20T-43-22330

YOKE

45

20T-43-22350

YOKE

46

04205-10622

PIN

47

04050-11612

PIN,COTTER

48

04205-10520

PIN

49

04050-11210

PIN,COTTER

50

20S-43-12160

LOCK
