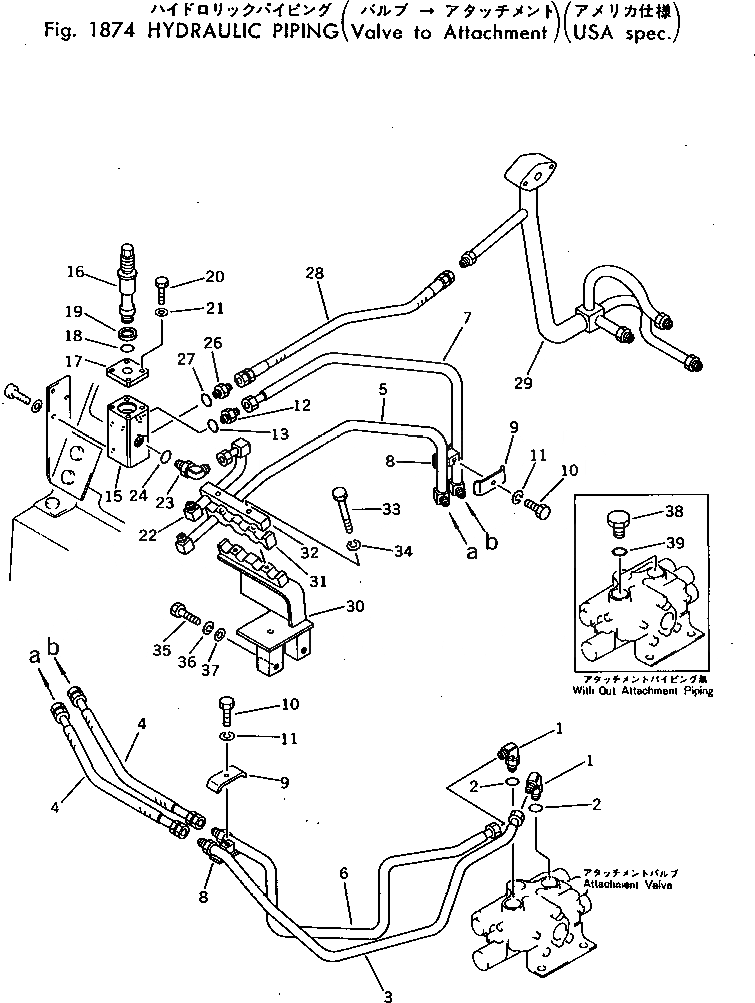

Запчасти Komatsu PC40-3 HYD. ТРУБЫ(КЛАПАН - ATTAC.)(С ATTAC.ТРУБЫ)(США СПЕЦ-Я.) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

07235-10422

ELBOW

2

07002-12034

O-RING

3

20T-973-3381

TUBE

4

07123-00404

HOSE

5

20T-973-3520

TUBE

6

20T-973-3391

TUBE

7

20T-973-3530

TUBE

8

20X-62-12690

BRACKET

9

201-62-21880

CLAMP

10

01010-51025

BOLT

11

01602-21030

WASHER

12

07230-10422

UNION

13

07002-12034

O-RING

14

20T-973-2600

VALVE ASS'Y

15

20T-973-2620

BODY

16

20T-973-2630

SPOOL

17

20T-973-2640

PLATE

18

07000-12018

O-RING

19

07001-02018

RING,BACK-UP

20

01010-50820

BOLT

21

01643-20820

WASHER

22

20T-973-3410

TUBE

23

07235-10522

ELBOW

24

07002-12434

O-RING

26

07230-10522

UNION

27

07002-12434

O-RING

28

07102-20505

HOSE

29

20T-973-3450

TUBE

30

20T-973-3420

BRACKET

31

20T-973-3430

CLAMP

32

20T-973-3440

CLAMP

33

01010-51075

BOLT

34

01602-21030

WASHER,SPRING

35

01010-51030

BOLT

36

01602-21030

WASHER,SPRING

37

01643-31032

WASHER,SPRING

38

07040-12012

PLUG

39

07002-12034

O-RING
