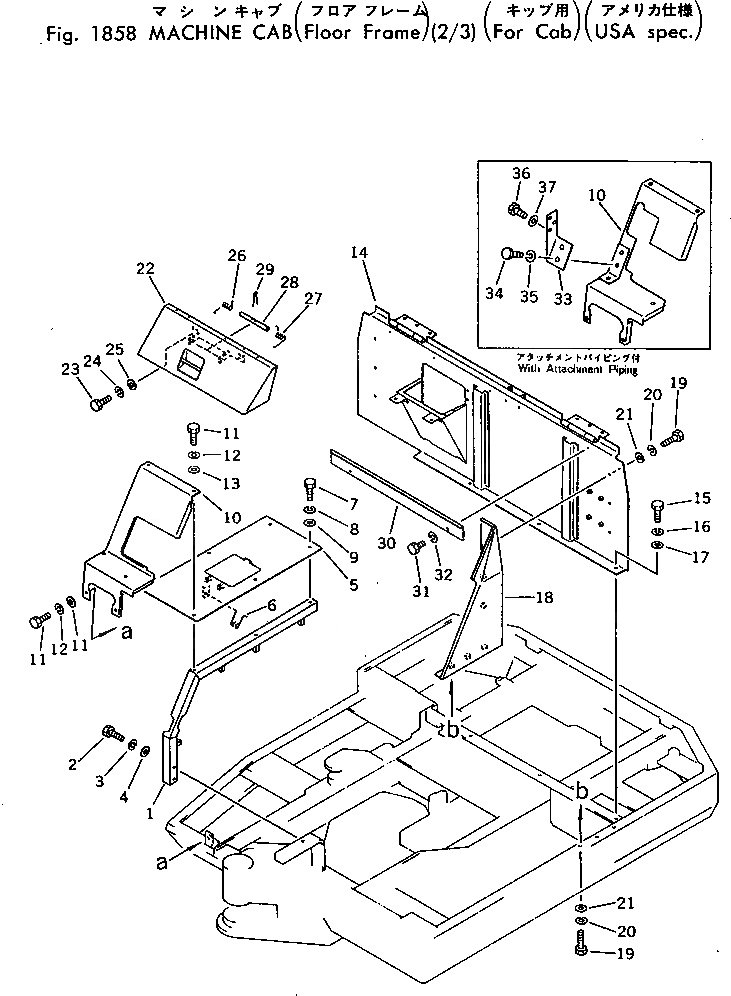

Запчасти Komatsu PC40-3 КАБИНА (ОСНОВН. КОНСТРУКЦИЯ) (/) (ДЛЯ КАБИНЫ) (США СПЕЦ-Я.) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20T-54-26172

BRACKET

2

01010-31020

BOLT

3

01602-01030

WASHER,SPRING

4

01643-31032

WASHER

5

20T-54-26181

COVER

6

09467-00002

SPRING

7

01010-31025

BOLT

8

01602-01030

WASHER,SPRING

9

01643-31032

WASHER

10

20T-54-26192

COVER

10

20T-973-3250

COVER,(WITH ATTACHMENT PIPING)

11

01010-31025

BOLT

12

01602-21030

WASHER,SPRING

13

01643-31032

WASHER

14

20T-54-27141

STAND

15

01010-31025

BOLT

16

01602-01030

WASHER,SPRING

17

01643-31032

WASHER

18

20T-54-26321

COVER

19

01010-51030

BOLT

20

01602-21030

WASHER,SPRING

21

01643-31032

WASHER

22

20T-54-27131

COVER

23

01010-51025

BOLT

24

01602-21030

WASHER,SPRING

25

01643-21032

WASHER

26

20T-54-26480

SPRING

27

20T-54-26490

SPRING

28

20T-54-26750

PIPE

29

04050-31025

PIN

30

20T-54-26771

PLATE

31

01010-51020

BOLT

32

01602-21030

WASHER,SPRING

33

20T-973-2290

BRACKET

34

01010-51235

BOLT

35

01602-21236

WASHER

36

01010-51020

BOLT

37

01643-21032

WASHER
