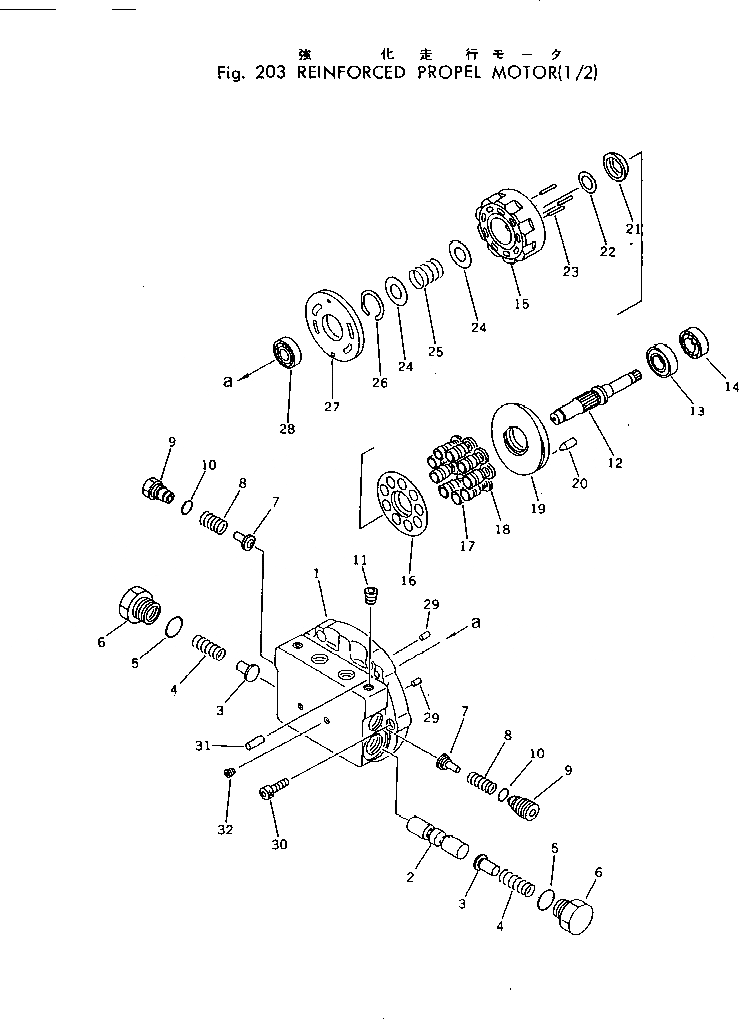

Запчасти Komatsu PC40-3 УСИЛЕНН. МОТОР ХОДА (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

20T-60-00130

MOTOR ASS'Y

|$2

TZ314A2101-0C

FLANGE SPOOL ASS'Y

1

FLANGE,REAR

2

SPOOL

3

TZ300A2052-00

STOPPER

4

TZ300A2056-00

SPRING

5

07000-12012

O-RING

6

TZ300A2051-00

PLUG

7

TZ300A2054-00

VALVE

8

TZ300A2055-00

SPRING

9

TZ300A2053-00

PLUG

10

07000-13022

O-RING

11

TZHP00001-4

PLUG

12

TZ840A2002-00

SHAFT

13

06000-06203

BEARING,BALL

14

TZ01703508

SEAL,OIL

15

TZ550A2004-00

BLOCK,CYLINDER

16

TZ550A2007-00

PLATE,RETAINER

|$19

TZ550A2105-00

PISTON SHOE ASS'Y

17

PISTON

18

SHOE

19

TZ550A2003-0A

PLATE,SWASH

20

TZ300A2017-00

PIN

21

TZ300A2008-00

BALL,THRUST

22

WASHER KIT

23

TZPP0020-12

PIN

24

TZ300A2010-00

WASHER

25

TZ550A2014-00

SPRING

26

TZIRT-03212

RING,SNAP

27

TZ550A2009-00

PLATE,TIMING

28

06000-06001

BEARING,BALL

29

TZPP0040-10

PIN

30

01252-30825

BOLT

31

TZPP0080-20

PIN

32

TZHP00001-8

PLUG
