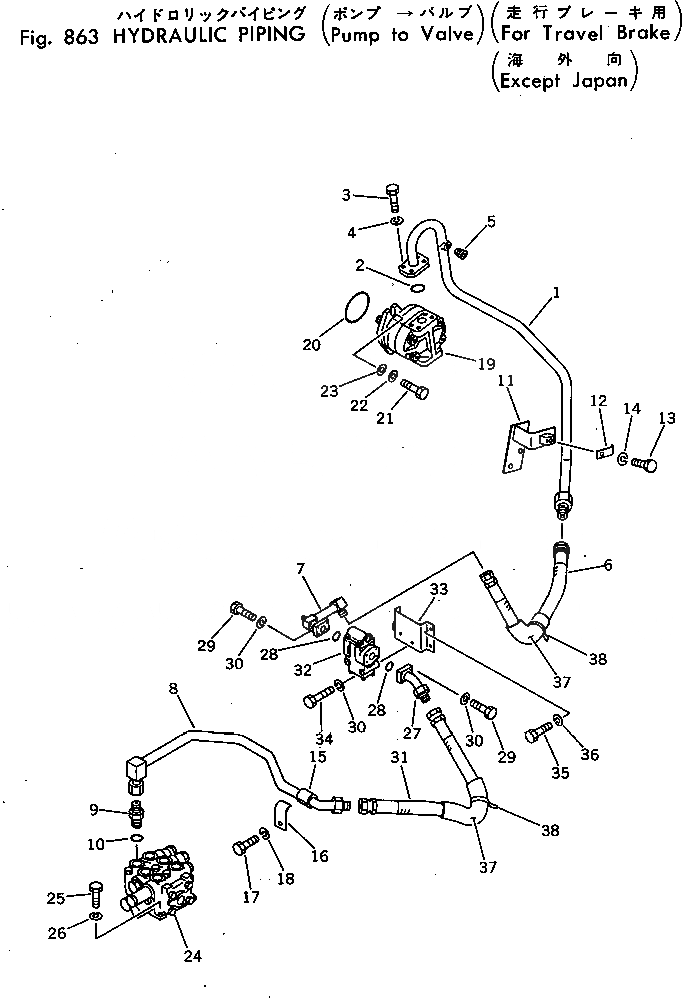

Запчасти Komatsu PC40-3 HYD. ТРУБЫ(POMP - КЛАПАН)(ДЛЯ ХОД ТОРМОЗ.)(КРОМЕ ЯПОН.) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20T-910-2731

TUBE

2

07000-13025

O-RING

3

01010-50835

BOLT

4

01602-20825

WASHER,SPRING

5

07043-00108

PLUG

6

07123-00506

HOSE

7

20T-62-58110

TUBE

8

20T-62-58130

TUBE

9

07230-10422

UNION

10

07002-12034

O-RING

11

20T-910-2752

BRACKET

12

201-62-21890

CLAMP

13

01010-51025

BOLT

14

01602-21030

WASHER,SPRING

15

20S-62-11910

SHEET

16

20S-62-11890

CLAMP

17

01010-51025

BOLT

18

01602-21030

WASHER,SPRING

19

705-11-23010

PUMP ASS'Y

20

07000-02085

O-RING

21

01010-51035

BOLT

22

01602-21030

WASHER,SPRING

23

01643-31032

WASHER

24

709-32-11200

VALVE ASS'Y

25

01010-50825

BOLT

26

01602-20825

WASHER,SPRING

27

20T-62-58120

TUBE

28

07000-13022

O-RING

29

01010-50830

BOLT

30

01602-20825

WASHER,SPRING

31

07123-00506

HOSE

32

702-15-62000

VALVE ASS'Y

33

20T-60-26110

BRACKET

34

01010-50875

BOLT

35

01010-51020

BOLT

36

01602-21030

WASHER,SPRING

37

205-62-53780

COVER

38

08034-00519

BAND
