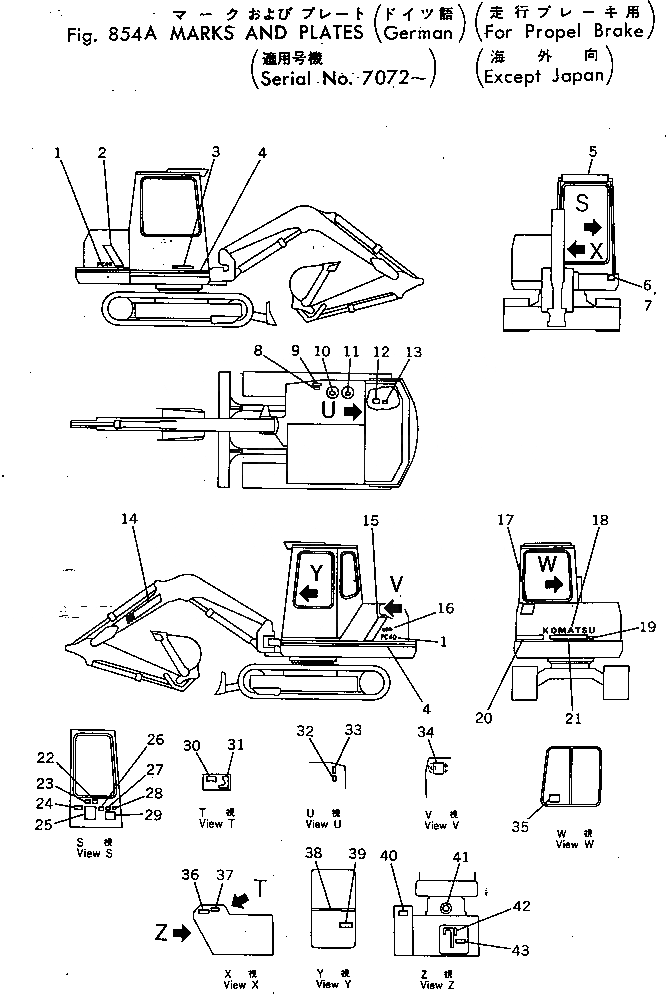

Запчасти Komatsu PC40-3 МАРКИРОВКА (ПОРТУГАЛ.) (ДЛЯ ХОД ТОРМОЗ.)(№77-) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20T-98-21310

PLATE, MARK,PC40

2

20T-98-21330

PLATE, STRIPE,ZEBRA

3

09690-40315

PLATE, MARK,KOMATSU

4

20S-98-21410

PLATE, STRIPE

5

20T-98-21190

PLATE, MARK,CAB

6

09601-20835

PLATE, NAME,(LIMITED SUPPLY)

7

04418-13060

SCREW

8

09652-21101

PLATE, CAUTION,FUEL TANK WATER DRAIN

9

09101-02000

PLATE, CAUTION,RECOMMEDED FUEL OIL

10

20T-98-22360

PLATE, OPERATING,HYDRAULIC FILTER

11

09656-21080

PLATE, INSTRUCTION,HYDRAULIC STRAINER

12

09650-21103

PLATE, INSTRUCTION,RADIATOR WATER

13

09668-02000

PLATE, SAFETY,RADIATOR CAP

14

20S-98-21151

PLATE, MARK,KOMATSU

15

20T-98-21320

PLATE, STRIPE,ZEBRA

16

09694-50160

PLATE, MARK,SYMBOL

17

20T-98-22240

PLATE, SAFETY,KEEP OUT OF TURNING AREA

18

09690-51250

PLATE, MARK,KOMATSU

19

20T-98-22330

PLATE, SAFETY,HOOD OPEN

20

20T-98-21350

PLATE, STRIPE

21

20T-98-21360

PLATE, STRIPE

22

20S-98-12170

PLATE, CAUTION,TRAVEL HIGH PEDAL

23

20T-98-22221

PLATE, OPERATING,DOOR LOCK CONTROL

24

09657-02011

PLATE, SAFETY,TRACK SHOE

25

20T-98-22211

CHART, OIL,OIL

26

09132-02000

PLATE, SAFETY,WARNING

27

09173-02000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

28

09651-02000

PLATE, SAFETY,BEFORE OPERATING

29

20T-98-19350

PLATE, CAUTION,TRACK LOADING INSTRUCTION

30

09683-21060

PLATE, OPERATING,STARTING SWITCH

31

20T-98-22170

PLATE, OPERATING,LOAD SWITCH (OFF-ON)

32

09653-02000

PLATE, SAFETY,HYDRAULIC TANK CAP

33

201-98-29340

PLATE, INSTRUCTION,RECOMMEDED HYDRAULIC OIL

34

09641-81661

PLATE, INSTRUCTION,AIR CLEANER

35

20T-98-23210

PLATE, OPERATING

36

20T-98-22270

PLATE, OPERATING,BLADE CONTROL

37

362-54-17320

PLATE, OPERATING,ENGINE CONTROL

38

20T-98-22350

PLATE, CAUTION,SLIDE OPEN SASH

39

20S-98-12240

PLATE, OPERATING

40

20T-98-22250

PLATE, OPERATING,SWING LEVER

41

20T-98-22300

PLATE, OPERATING,OPERATOR'S SEAT

42

09685-00002

PLATE, OPERATING,SWING LOCK PIN

43

09131-02000

PLATE, SAFETY,SWING LOCK PIN
