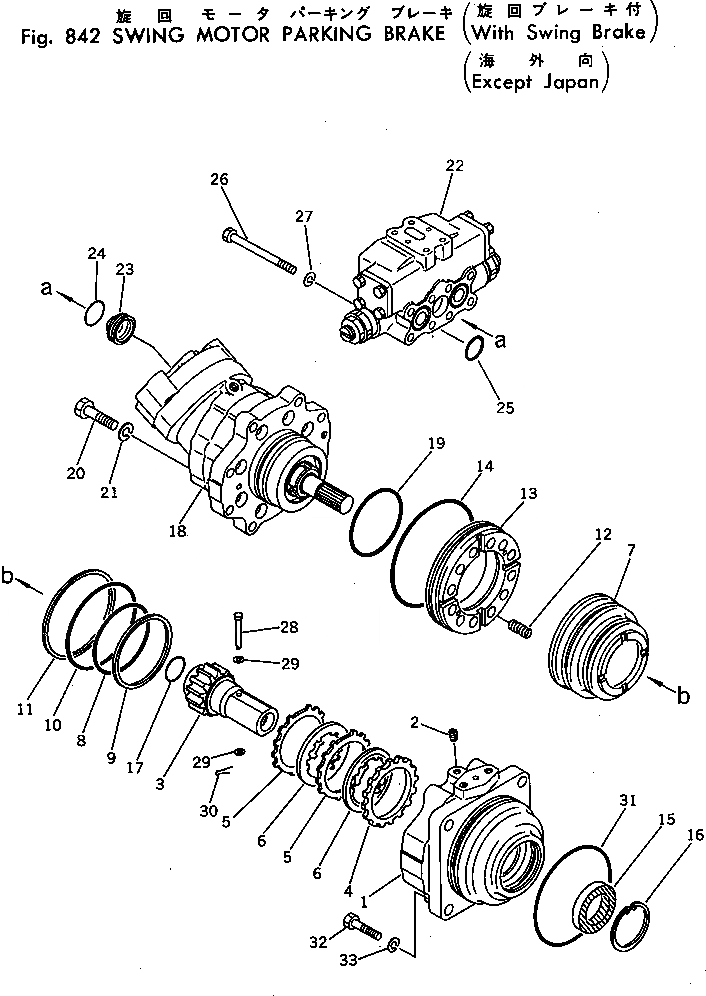

Запчасти Komatsu PC40-3 МОТОР ПОВОРОТА СТОЯНОЧНЫЙ ТОРМОЗ (С ПОВОРОТН. ТОРМОЗ.) (КРОМЕ ЯПОН.) ОПЦИОННЫЕ КОМПОНЕНТЫ

|$0

706-73-02900

SWING MOTOR ASS'Y,(KMF40ADT)

|$2

706-73-91001

PARKING BRAKE ASS'Y

1

HOUSING,BRAKE

2

706-73-40340

PLUG

3

706-73-90060

COUPLING

4

706-73-91030

PLATE

5

706-73-91040

PLATE

6

706-73-91050

DISC

7

706-73-91080

PISTON,BRAKE

8

07000-15095

O-RING

9

706-73-91130

RING,BACK-UP

10

706-73-91110

O-RING

11

706-73-91120

RING,BACK-UP

12

706-73-91150

SPRING

13

706-73-91141

SEAT,SPRING

14

07000-02135

O-RING

15

706-73-90180

SEAL,OIL

16

04065-06825

RING,SNAP

17

706-73-90070

O-RING

18

706-73-44003

MOTOR ASS'Y,(KMF040)

19

07000-02085

O-RING

20

01010-61245

BOLT

21

01602-01236

WASHER,SPRING

22

706-73-71100

BRAKE VALVE ASS'Y

23

706-73-40830

CAP

24

07000-03028

O-RING

25

07000-13025

O-RING

26

01011-51000

BOLT

27

01602-21030

WASHER,SPRING

28

706-73-90160

PIN

29

01641-00608

WASHER

30

04050-01610

PIN,COTTER

31

07000-02135

O-RING

32

01010-31245

BOLT

33

01602-01236

WASHER,SPRING
