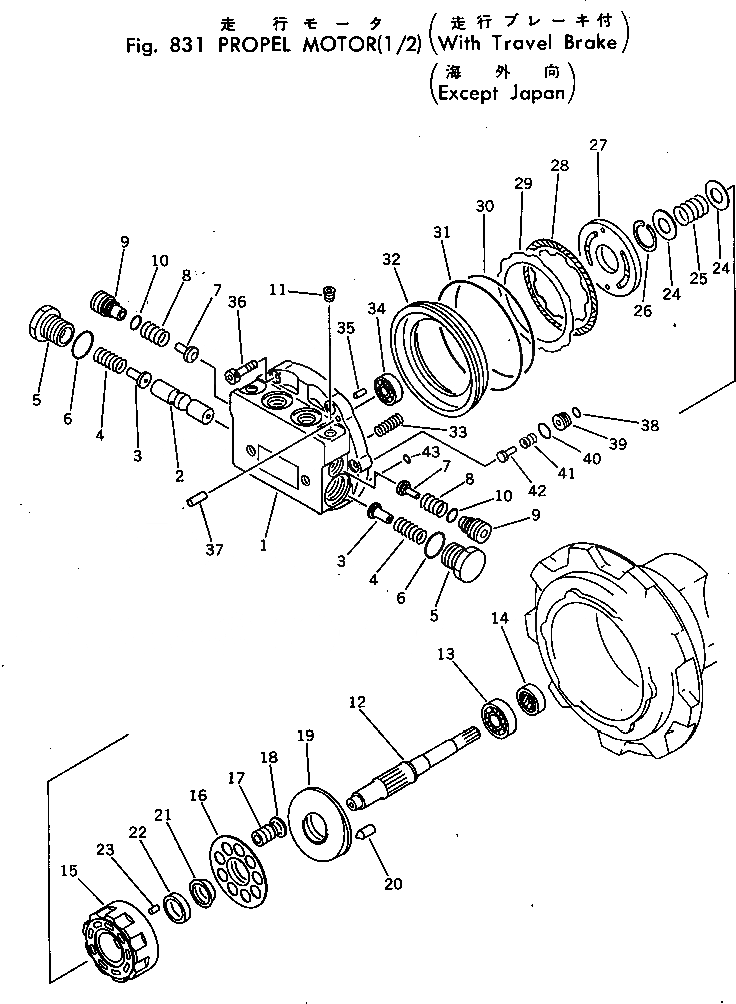

Запчасти Komatsu PC40-3 МОТОР ХОДА (/) (С ХОД ТОРМОЗ.) (КРОМЕ ЯПОН.) ОПЦИОННЫЕ КОМПОНЕНТЫ

|$0

20T-60-00120

TRAVEL MOTOR ASS'Y

|$2

FLANGE SPOOL ASS'Y

1

FLANGE,REAR

2

SPOOL

3

STOPPER

4

SPRING

5

PLUG

6

07000-12012

O-RING (KIT)

7

VALVE

8

SPRING

9

PLUG

10

07000-13022

O-RING (KIT)

11

PLUG

12

SHAFT

13

BEARING,BALL

14

SEAL,OIL (KIT)

15

BLOCK,CYLINDER

16

PLATE,RETAINER

17

PISTON

18

SHOE,PISTON

19

PLATE,SWASH

20

PIN

21

BALL,THRUST

22

WASHER KIT

23

PIN

24

WASHER

25

SPRING

26

RING,SNAP

27

PLATE,TIMING

28

TZ550A2015-00

DISK,FRICTION

29

TZ550A2016-00

PLATE

30

07000-05100

O-RING (KIT)

31

TZROWG23-13110

O-RING (KIT)

32

TZ550A2012-00

PISTON

33

TZ550A2013-00

SPRING

34

BEARING,BALL

35

PIN

36

BOLT

37

PIN

38

TZ312A2022-00

RING

39

TZ312A2018-00

SEAT,VALVE

40

07000-11007

O-RING (KIT)

41

TZ312A2020-00

SPRING

42

TZ312A2019-00

VALVE

43

07000-11005

O-RING (KIT)

43

TZ558A9000-00

SEAL KIT

43

07000-15210

O-RING

43

TZROWG44-13202

O-RING

43

TZROWG26-13120

O-RING

43

TZRO17820038

SEAL,FLOATING

43

TZ015Z-17358

SEAL,OIL

43

07000-12012

O-RING

43

07000-13022

O-RING

43

07000-05100

O-RING

43

TZROWG23-13110

O-RING

43

07000-11007

O-RING
