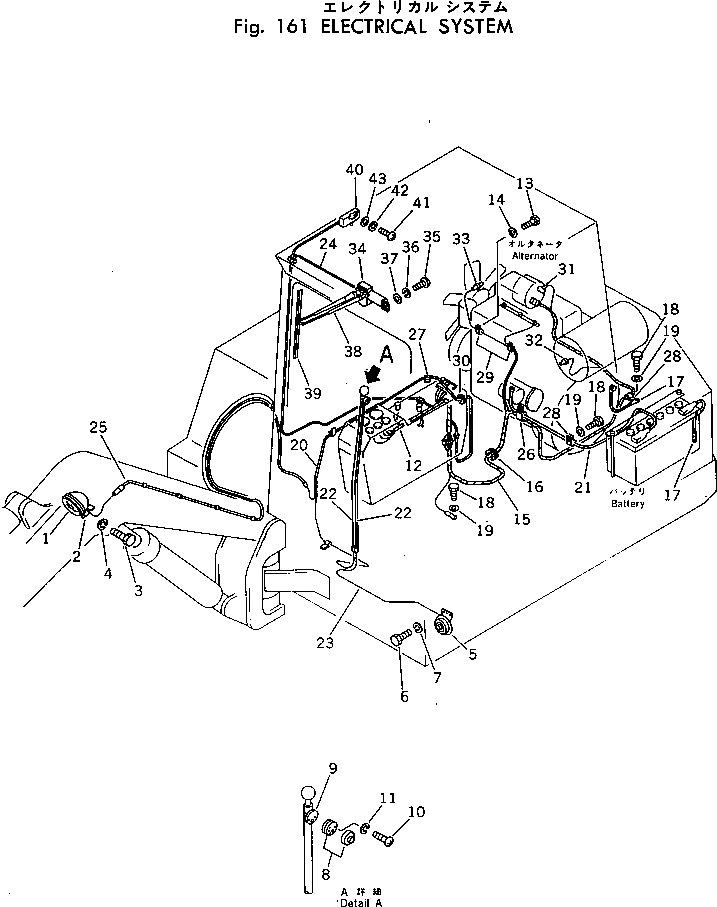

Запчасти Komatsu PC40-3 ЭЛЕКТРИКА КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

08125-01200

LAMP ASS'Y

1

08107-01260

BULB, 60W

1

08125-00006

LENS

2

201-06-21110

BRACKET

3

01010-31225

BOLT

4

01602-01236

WASHER,SPRING

5

08160-41200

HORN

6

01010-30816

BOLT

7

01602-00825

WASHER,SPRING

8

20N-06-11230

SWITCH,HORN

9

20S-06-13110

SEAT

10

01220-40316

SCREW

11

01601-00307

WASHER,SPRING

12

20T-06-22131

WIRE ASS'Y

13

01010-51020

BOLT

14

01642-21016

WASHER

15

20T-06-22140

WIRE ASS'Y

16

08037-03614

GROMMET

17

20R-06-11240

WIRE

18

01010-51016

BOLT

19

01642-21016

WASHER

20

20T-06-24110

WIRE ASS'Y

21

20T-06-22160

WIRE

22

20S-06-13190

WIRE

23

20S-06-13180

WIRE

24

20S-06-13460

WIRE ASS'Y

25

20T-06-24120

WIRE

26

08036-02514

CLIP

27

08036-10814

CLIP

28

08036-01414

CLIP

29

08036-10810

CLIP

30

08037-02512

GROMMET

31

08038-00519

CAP

32

08073-00505

SWITCH,OIL PRESSURE

33

198-06-11940

SENSOR

34

20S-06-13410

MOTOR

35

01220-40516

SCREW

36

01602-20619

WASHER,SPRING

37

01641-20508

WASHER

38

20S-06-13420

ARM

39

20S-06-13430

BLADE

40

08141-01200

LAMP

40

08116-01210

BULB, 10W

41

01220-40416

SCREW

42

01601-20410

WASHER,SPRING

43

01641-20405

WASHER
