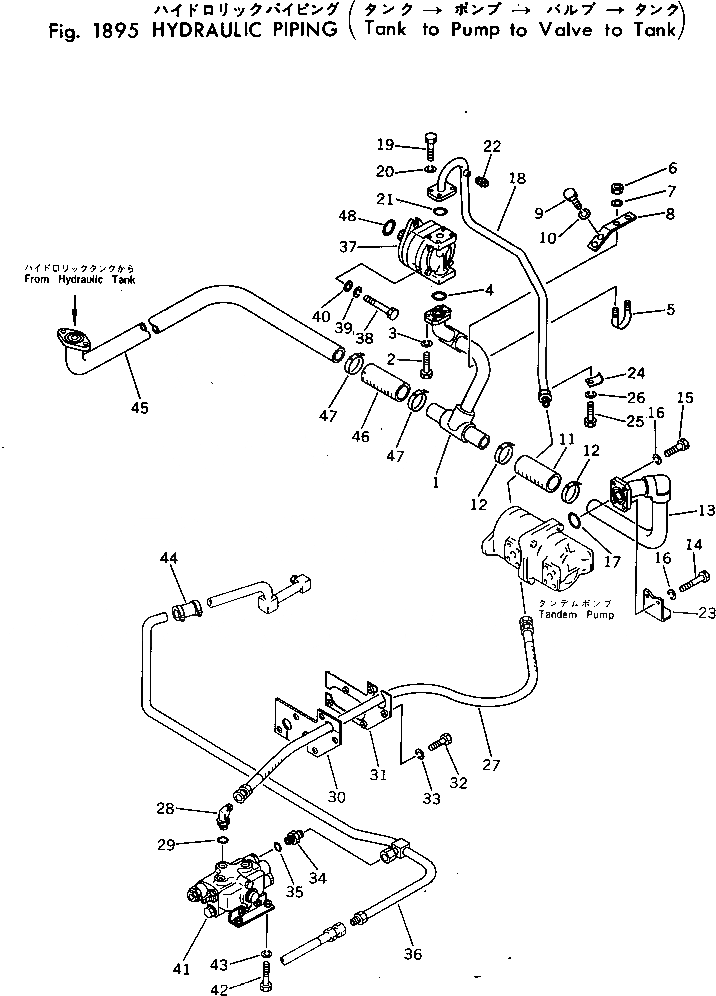

Запчасти Komatsu PC40-2 ГИДРОЛИНИЯ (ИЗ БАКА В НАСОС - КЛАПАН - БАК) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20T-910-2710

PIPE

2

01010-51035

BOLT

3

01602-21030

WASHER,SPRING

4

07000-03032

O-RING

5

07283-23442

CLIP

6

01599-01011

NUT

7

01643-31032

WASHER

8

20T-910-2740

BRACKET

9

01010-51020

BOLT

10

01602-21030

WASHER,SPRING

11

07260-24111

HOSE

12

07281-00609

CLAMP

13

20T-910-2720

PIPE

14

01010-51245

BOLT

15

01010-51240

BOLT

16

01602-21236

WASHER,SPRING

17

07000-03042

O-RING

18

20T-910-2730

TUBE

19

01010-50835

BOLT

20

01602-20825

WASHER

21

07000-13025

O-RING

22

07042-20108

PLUG

23

20T-910-2750

BRACKET

24

201-62-21890

CLAMP

25

01010-51025

BOLT

26

01602-21030

WASHER,SPRING

27

07108-20507

HOSE

28

07235-10522

ELBOW

29

07002-12434

O-RING

30

20T-62-54160

SHEET

31

20T-910-2760

PLATE

32

01010-50820

BOLT

33

01602-20825

WASHER

34

102-965-5270

NIPPLE

35

07002-02034

O-RING

36

20T-910-2830

TUBE

37

705-11-23010

PUMP ASS'Y

38

01010-51035

BOLT

39

01602-21030

WASHER

40

01643-31032

WASHER

41

700-21-28000

VALVE ASS'Y

42

01010-50825

BOLT

43

01602-20825

WASHER,SPRING

44

07332-00400

COUPLING ASS'Y

45

20T-62-54110

TUBE

46

07260-24118

HOSE

47

07281-00609

CLAMP

48

07000-02085

O-RING
