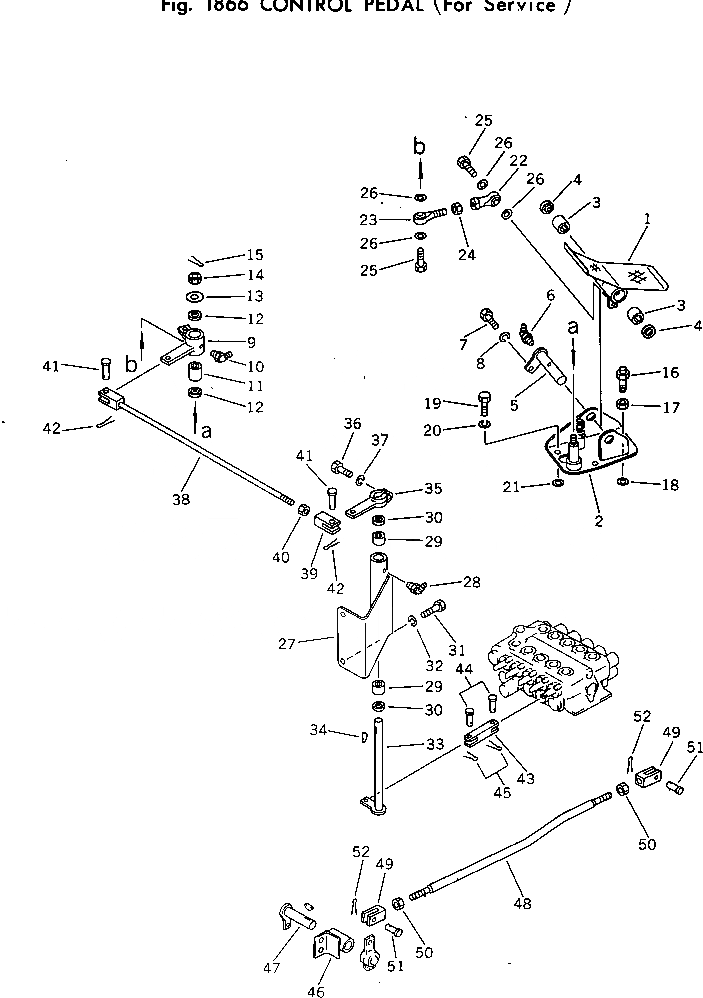

Запчасти Komatsu PC40-2 ПЕДАЛЬ УПРАВЛ-Я (ДЛЯ SERVICE) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20S-973-1140

PEDAL

2

20S-973-1130

BRACKET

3

06120-02016

BEARING,NEEDLE

4

06122-02004

SEAL,BEARING

5

20S-973-1150

SHAFT

6

07020-00900

FITTING,GREASE

7

01010-50825

BOLT

8

01602-20825

WASHER,SPRING

9

20S-973-1160

LEVER

10

07020-00675

FITTING,GREASE

11

06120-02030

BEARING,NEEDLE

12

06122-02004

SEAL,BEARING

13

202-54-11281

WASHER

14

01593-11210

NUT

15

04050-13020

PIN,COTTER

16

09311-31237

BUMPER

17

01580-01210

NUT

18

01643-31232

WASHER

19

01010-51025

BOLT

20

01602-21030

WASHER,SPRING

21

01643-31032

WASHER

22

04250-51056

END

23

04252-01061

END

24

01582-11008

NUT

25

01010-51035

BOLT

26

04254-01032

SPACER

27

20T-973-2180

BRACKET

28

07020-00675

FITTING,GREASE

29

06120-01612

BEARING,NEEDLE

30

06122-01603

SEAL,BEARING

31

01010-51035

BOLT

32

01602-21030

WASHER,SPRING

33

20T-973-2190

SHAFT

34

04010-00519

KEY

35

20T-973-2170

LEVER

36

01010-50830

BOLT

37

01602-20825

WASHER,SPRING

38

04244-41056

ROD

39

04210-21040

YOKE

40

01582-11008

NUT

41

04205-11028

PIN

42

04050-13015

PIN,COTTER

43

20T-973-2210

YOKE

44

04205-10622

PIN

45

04050-11610

PIN,COTTER

46

20T-973-2230

BRACKET

47

20T-973-2220

PIN

48

20T-973-2250

ROD

49

20T-973-2240

YOKE

50

01582-11210

NUT

51

04205-10828

PIN

52

04050-12012

PIN,COTTER
