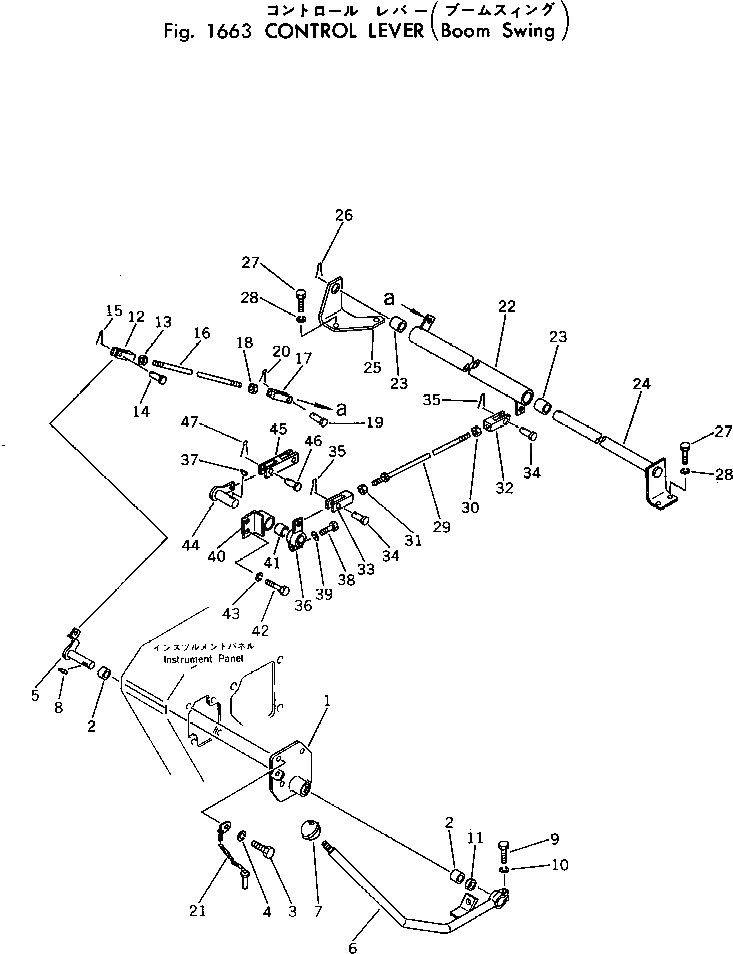

Запчасти Komatsu PC40-2 РЫЧАГ УПРАВЛ-Я (ПОВОРОТ СТРЕЛЫ) ГИДРАВЛИКА

|$0

20T-43-00120

BRACKET ASS'Y

1

BRACKET

2

09350-02020

BUSHING

3

01010-31025

BOLT

4

01602-01030

WASHER,SPRING

5

20S-43-12120

LEVER

6

20S-43-12131

LEVER

7

20R-43-11290

KNOB

8

04010-00519

KEY

9

01010-30830

BOLT

10

01602-00825

WASHER,SPRING

11

06122-02004

SEAL,BEARING

12

20S-43-12150

YOKE

13

01582-11008

NUT

14

04205-10822

PIN

15

04050-12012

PIN,COTTER

16

04248-31040

ROD

17

20T-43-22210

YOKE

18

01508-21006

NUT,L.H. THREAD

19

04205-10822

PIN

20

04050-12012

PIN,COTTER

21

20S-43-12160

LOCK

|$22

20T-43-00130

LEVER ASS'Y

22

LEVER

23

09350-02225

BUSHING

24

20T-43-22160

SHAFT

25

20T-43-22170

BRACKET

26

04050-15030

PIN

27

01010-51025

BOLT

28

01602-21030

WASHER,SPRING

29

04248-31065

ROD

30

01582-11008

NUT

31

01582-21008

NUT

32

20S-43-12150

YOKE

33

20T-43-22210

YOKE

34

04205-10822

PIN

35

04050-12012

PIN

36

20T-43-22140

LEVER

37

04010-00519

KEY

38

01010-50830

BOLT

39

01602-20825

WASHER,SPRING

|$41

20T-43-00140

BRACKET ASS'Y

40

BRACKET

41

09350-02015

BUSHING

42

01010-51025

BOLT

43

01602-21030

WASHER,SPRING

44

20T-43-22130

PIN

45

04213-20625

YOKE

46

04205-10622

PIN

47

04050-11610

PIN
