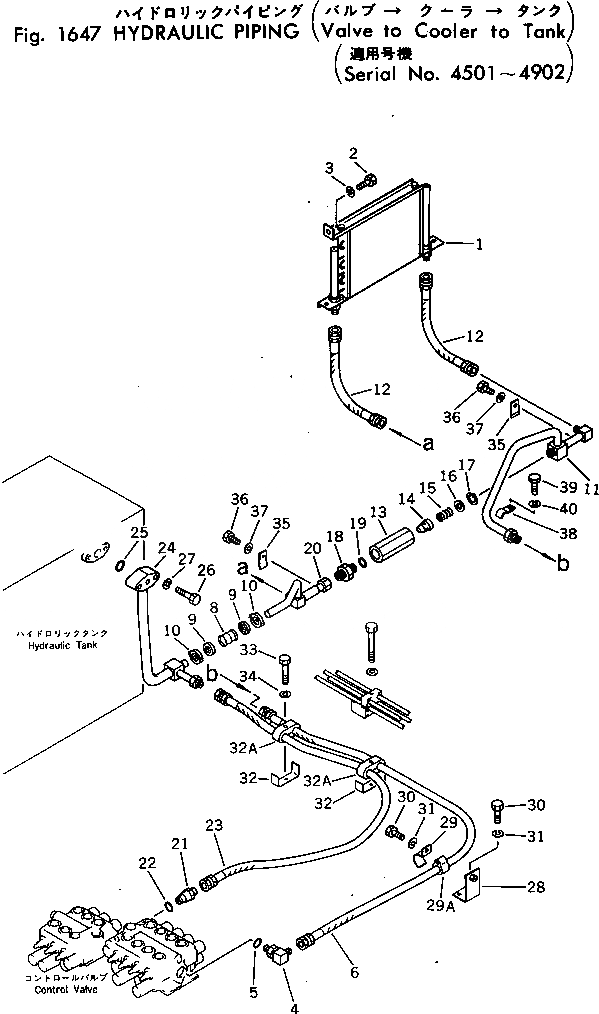

Запчасти Komatsu PC40-2 ГИДРОЛИНИЯ (КЛАПАН - ОХЛАДИТЕЛЬ - БАК)(№-9) ГИДРАВЛИКА

1

20T-03-22190

COOLER,OIL

2

01010-51225

BOLT

3

01602-21236

WASHER,SPRING

4

20T-62-51590

ELBOW

5

07002-02434

O-RING

6

07102-20516

HOSE

8

07332-00400

COUPLING ASS'Y

9

07332-50400

GASKET

10

07332-60400

CLAMP

11

20T-62-54532

TUBE

12

07102-20404

HOSE

|$11

201-62-21600

CHECK VALVE ASS'Y

13

203-60-21280

BODY

14

201-62-21590

POPPET

15

203-60-21310

SPRING

16

205-60-51320

SEAT

17

04065-02812

RING,SNAP

18

20T-62-51660

NIPPLE

19

07002-13334

O-RING

20

20T-62-54570

TUBE

21

201-62-21640

NIPPLE

22

07002-02034

O-RING

23

07102-20515

HOSE

24

20T-62-54561

O-RING

25

07000-03035

O-RING

26

01010-51065

BOLT

27

01602-21030

WASHER,SPRING

28

20T-62-54650

BRACKET

29

155-49-14190

CLAMP

29A

202-981-1360

BUSHING

30

01010-51025

BOLT

31

01602-21030

WASHER,SPRING

32

20T-62-54670

PLATE

32A

20N-62-21240

BUSHING

33

01010-510650

USO

34

01602-21030

WASHER,SPRING

35

201-62-21890

CLAMP

36

01010-51025

BOLT

37

01602-21030

WASHER,SPRING

38

205-62-65330

CLAMP

39

01010-51020

BOLT

40

01602-21030

WASHER,SPRING
