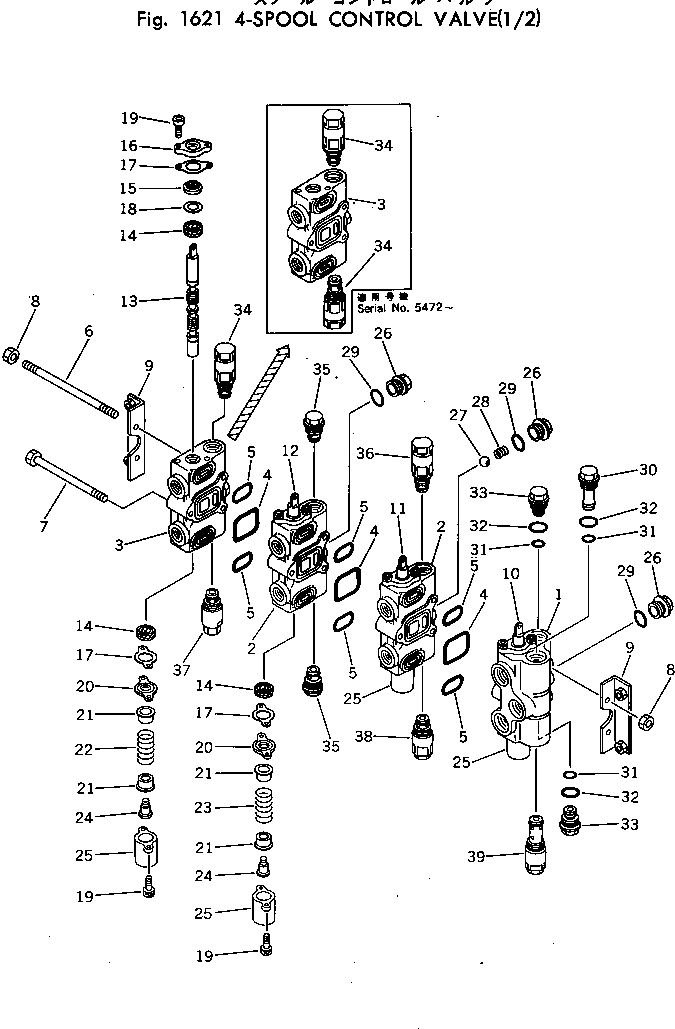

Запчасти Komatsu PC40-2 4-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) ГИДРАВЛИКА

|$0

700-24-38000

VALVE ASS'Y

1

BODY,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

07000-13040

O-RING

5

700-22-11450

O-RING

6

700-24-13110

STUD

7

700-24-13140

BOLT

8

01580-10806

NUT

9

700-26-11170

ANGLE

10

SPOOL

11

SPOOL

12

SPOOL

13

SPOOL

14

700-22-11252

U-PACKING

15

700-22-11261

SEAL,DUST

16

700-22-11270

PLATE

17

700-22-11420

GASKET

18

700-22-11430

COLLAR

19

01252-30616

BOLT

20

700-22-11281

PLATE

21

700-22-11290

RETAINER

22

700-22-11311

SPRING

23

700-23-13130

SPRING

24

700-22-11320

PLUG

25

700-22-11331

COVER

26

700-22-11351

PLUG

27

700-22-12340

BALL

28

700-22-12350

SPRING

29

07002-12434

O-RING

30

700-26-11150

PLUG

31

07000-12014

O-RING

32

07002-02434

O-RING

33

700-22-11360

PLUG

34

700-20-61002

VALVE ASS'Y

34

700-20-72000

VALVE ASS'Y

35

700-20-81000

VALVE ASS'Y

36

700-20-65000

VALVE ASS'Y

37

700-20-63001

VALVE ASS'Y

38

700-20-71000

VALVE ASS'Y

39

700-23-53000

VALVE ASS'Y
