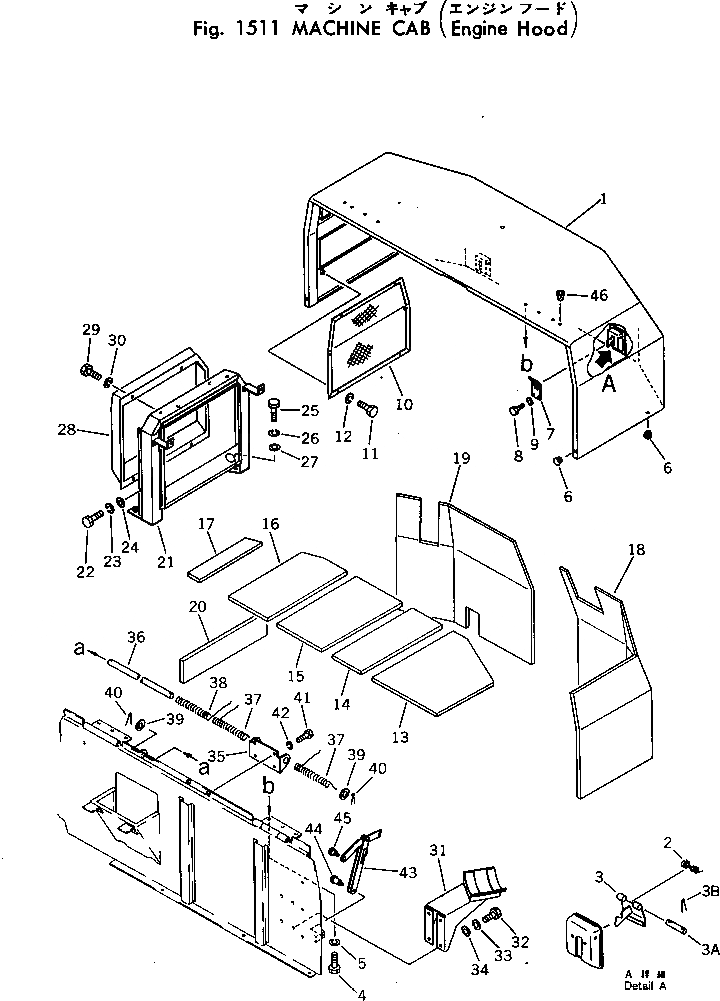

Запчасти Komatsu PC40-2 КАБИНА (КАПОТ) ОСНОВНАЯ РАМА И КАБИНА

|$0

20T-54-00110

HOOD ASS'Y

1

HOOD

2

20T-54-26430

SPRING

3

20R-54-21160

LEVER

3A

09461-00022

PIN

3B

04050-13018

PIN,COTTER

4

01010-51025

BOLT

5

01602-21030

WASHER,SPRING

6

203-54-32260

STOPPER

7

20R-54-21170

LOCK

8

01010-31025

BOLT

9

01602-01030

WASHER,SPRING

10

20T-54-26560

COVER

11

01010-50816

BOLT

12

01602-20825

WASHER,SPRING

13

20T-54-26340

SHEET

14

20T-54-26350

SHEET

15

20T-54-26360

SHEET

16

20T-54-26370

SHEET

17

20T-54-26380

SHEET

18

20T-54-26390

SHEET

19

20T-54-26410

SHEET

20

20T-54-26420

SHEET

21

20T-54-26510

BRACKET

22

01010-51020

BOLT

23

01602-21030

WASHER,SPRING

24

01643-31032

WASHER

25

01010-51225

BOLT

26

01602-21236

WASHER,SPRING

27

01643-31232

WASHER

28

20T-54-26550

DUCT

29

01010-51020

BOLT

30

01602-21030

WASHER,SPRING

31

20T-54-26580

BRACKET

32

01010-51025

BOLT

33

01602-21030

WASHER,SPRING

34

01643-31032

WASHER

35

20T-54-26240

BRACKET

36

20T-54-26250

ROD

37

20T-54-26260

SPRING

38

20T-54-26270

SPRING

39

20T-54-26280

SPACER

40

04050-16045

PIN,COTTER

41

01010-51025

BOLT

42

01602-21030

WASHER,SPRING

43

20R-54-21430

STAY

44

20R-54-21440

BOLT

45

20R-54-21450

BOLT

46

07049-01012

PLUG
