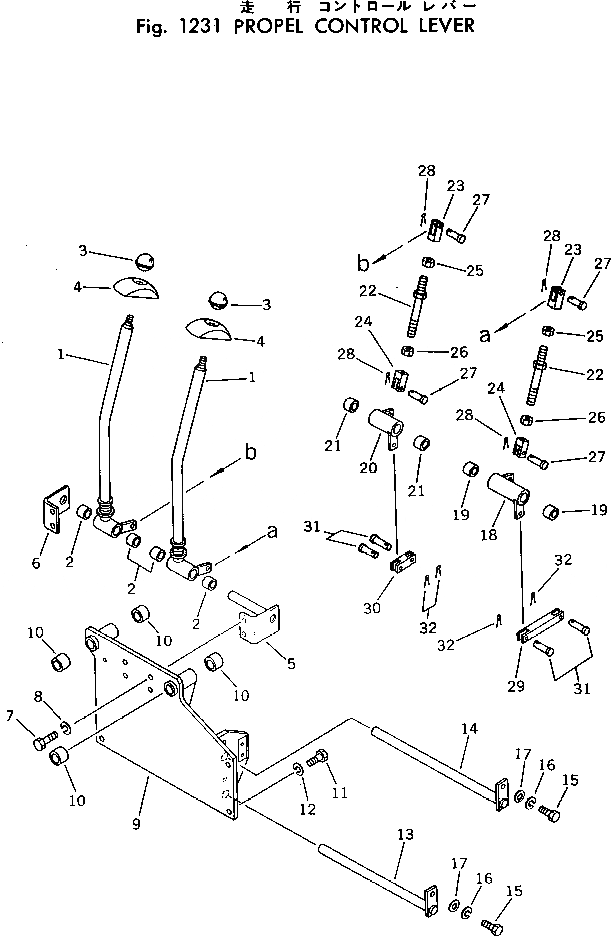

Запчасти Komatsu PC40-2 PКАНАТL РЫЧАГ УПРАВЛ-Я ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

20S-43-00010

LEVER ASS'Y,L.H.

|$1

20S-43-00020

LEVER ASS'Y,R.H.

1

LEVER,L.H.

1

LEVER,R.H.

2

09350-02220

BUSHING

3

20R-43-11280

KNOB

4

20S-43-11230

COVER

5

20S-43-11260

SHAFT

6

20S-03-11270

COLLAR

7

01010-31030

BOLT

8

01602-01030

WASHER,SPRING

|$11

20T-43-00110

BRACKET ASS'Y

9

BRACKET

10

09350-02225

BUSHING

11

01010-31030

BOLT

12

01602-01030

WASHER,SPRING

13

20S-43-11290

SHAFT

14

20S-43-11310

SHAFT

15

01010-31025

BOLT

16

01602-01030

WASHER,SPRING

17

01643-31032

WASHER

|$21

20S-43-00030

LEVER ASS'Y

18

LEVER

19

09350-02220

BUSHING

|$24

20S-43-00040

LEVER ASS'Y

20

LEVER

21

09350-02220

BUSHING

22

04248-30811

ROD

23

04210-20832

YOKE

24

04220-20832

YOKE

25

01580-10806

NUT

26

01508-20805

NUT,L.H. THREAD

27

04205-10822

PIN

28

04050-12012

PIN,COTTER

29

20S-43-11340

YOKE

30

20S-43-11350

YOKE

31

04205-10622

PIN

32

04050-11610

PIN,COTTER
