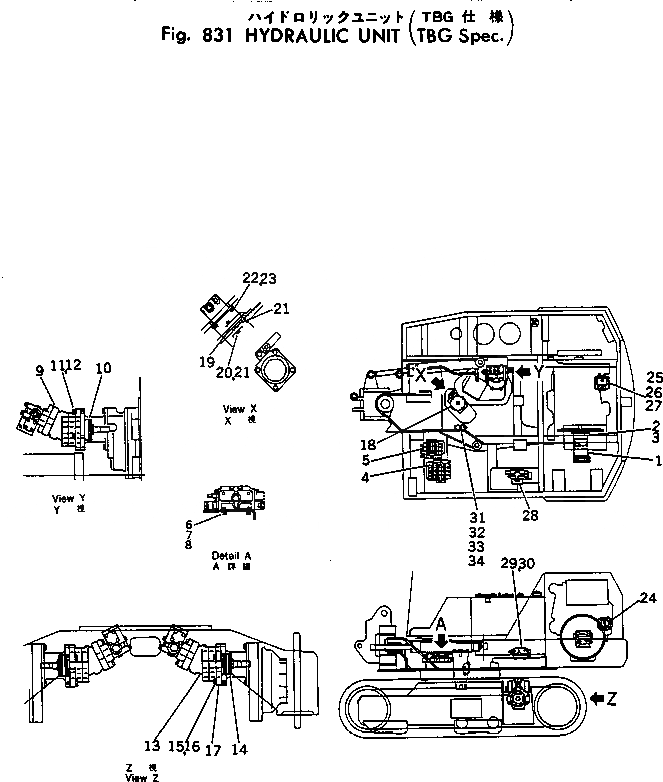

Запчасти Komatsu PC40-2 ГИДРАВЛ БЛОК (СПЕЦ-Я TBG) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

705-54-20000

PUMP ASS'Y

2

01010-31230

BOLT

3

01643-31232

WASHER

4

700-24-38000

VALVE ASS'Y

5

700-23-41000

VALVE ASS'Y

6

01010-30825

BOLT

7

01602-00825

WASHER,SPRING

8

01643-30823

WASHER

9

706-73-02700

SWING MOTOR ASS'Y

10

07000-02085

O-RING

11

01010-31245

BOLT

12

01602-01236

WASHER,SPRING

13

706-73-03701

TRAVEL MOTOR ASS'Y

14

07000-02085

O-RING

15

01010-31245

BOLT

16

01602-01236

WASHER,SPRING

17

07049-01620

PLUG

18

703-08-12100

SWIVEL JOINT ASS'Y

19

20T-60-14110

PLATE

20

201-60-11230

PIN

21

04052-01664

PIN

22

01010-31230

BOLT

23

01602-01236

WASHER,SPRING

24

705-11-23010

PUMP ASS'Y

25

01010-31035

BOLT

26

01602-01030

WASHER,SPRING

27

01643-31032

WASHER

28

700-21-28000

VALVE ASS'Y

29

01010-30825

BOLT

30

01602-00825

WASHER,SPRING

31

20S-60-13120

SWITCH,PRESSURE

32

01220-40540

SCREW

33

01601-00513

WASHER,SPRING

34

01641-20508

WASHER
