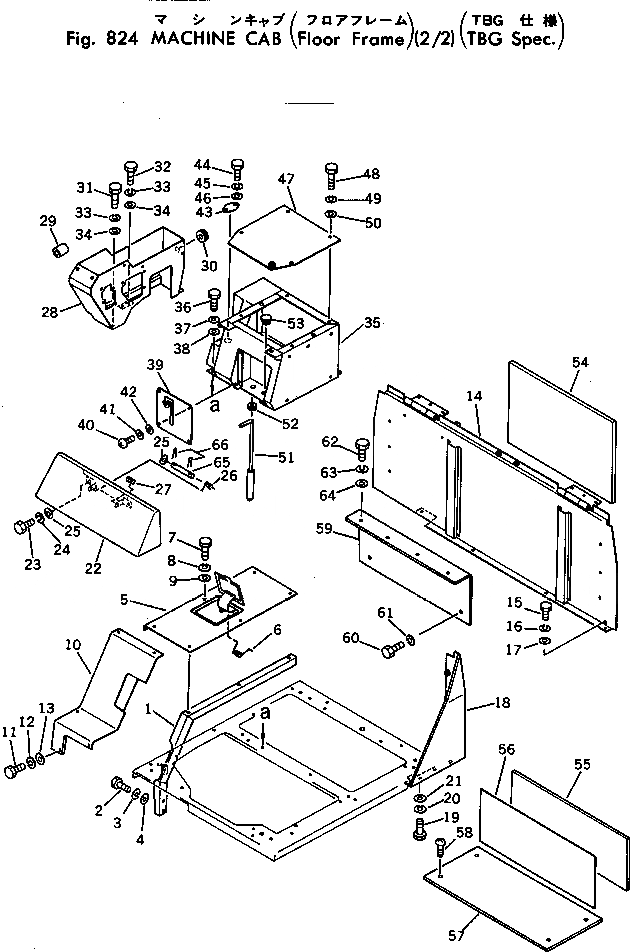

Запчасти Komatsu PC40-2 КАБИНА (ОСНОВН. КОНСТРУКЦИЯ) (/) (СПЕЦ-Я TBG) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20T-54-26170

BRACKET

2

01010-51025

BOLT

3

01602-21030

WASHER,SPRING

4

01643-31032

WASHER

5

20T-54-26180

COVER

6

09467-00002

SPRING

7

01010-51025

BOLT

8

01602-21030

WASHER,SPRING

9

01643-31032

WASHER

10

20T-54-26190

COVER

11

01010-51035

BOLT

12

01602-21030

WASHER,SPRING

13

01643-31032

WASHER

14

20T-54-27140

STAND

15

01010-31025

BOLT

16

01602-01030

WASHER,SPRING

17

01643-31032

WASHER

18

20T-54-26320

COVER

19

01010-51030

BOLT

20

01602-21030

WASHER,SPRING

21

01643-31032

WASHER

22

20T-54-27130

COVER

23

01010-51025

BOLT

24

01602-21030

WASHER,SPRING

25

01643-31032

WASHER

26

20T-54-26480

SPRING

27

20T-54-26490

SPRING

|$27

20S-54-00010

BOX ASS'Y

28

BOX,PANEL

29

09350-02020

BUSHING,(NOT SHOWN)

30

08037-02512

GROMMET

31

01010-51025

BOLT

32

01010-51035

BOLT

33

01602-21030

WASHER,SPRING

34

01643-31032

WASHER

35

20S-54-15120

BOX

36

01010-51025

BOLT

37

01602-21030

WASHER,SPRING

38

01643-31032

WASHER

39

20T-54-27110

PLATE

40

01220-40616

SCREW

41

01602-20619

WASHER,SPRING

42

01643-30623

WASHER

43

20T-54-26120

PLATE

44

01010-30620

BOLT

45

01602-20619

WASHER,SPRING

46

01643-30623

WASHER

47

20S-54-15150

COVER

48

01010-51025

BOLT

49

01602-21030

WASHER,SPRING

50

01643-31032

WASHER

51

20T-54-27120

PIN

52

08037-01610

GROMMET

53

09415-01610

CAP

54

20T-54-26330

SHEET

55

20T-54-27150

SEAL

56

20T-54-27160

PLATE

57

20T-54-27170

PLATE

58

01370-00512

SCREW

59

20T-54-26770

PLATE

60

01010-51020

BOLT

61

01602-21030

WASHER,SPRING

62

01010-51025

BOLT

63

01602-21030

WASHER,SPRING

64

01643-31032

WASHER

65

20T-54-26750

PIPE

66

04050-13020

PIN,COTTER
