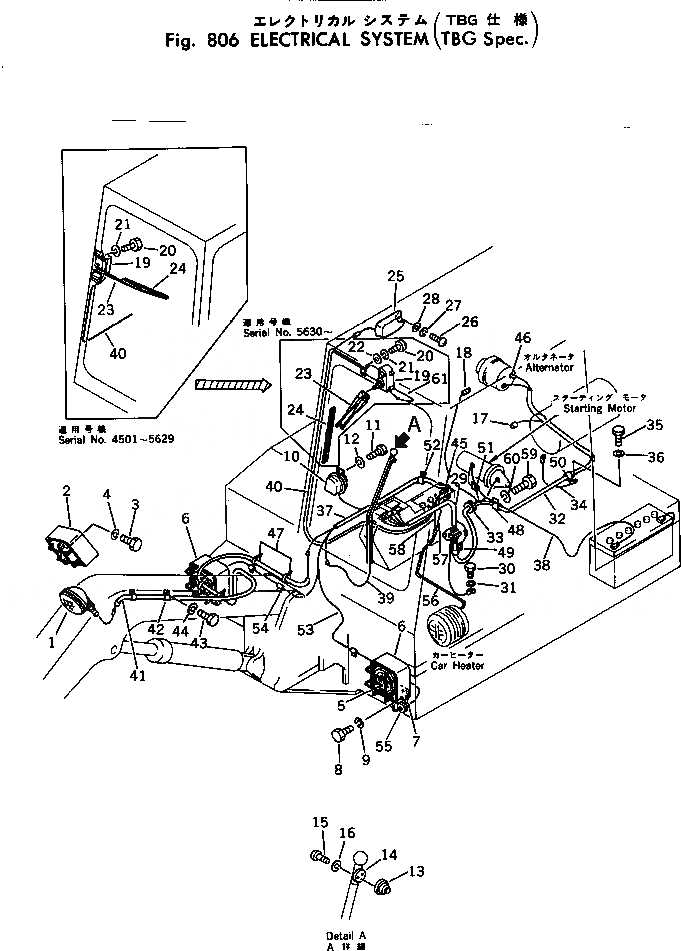

Запчасти Komatsu PC40-2 ЭЛЕКТРИКА (СПЕЦ-Я TBG) ОПЦИОННЫЕ КОМПОНЕНТЫ
№
Артикул
Название
Примечание
Количество
1
08125-01200
LAMP ASS'Y
2
20S-06-14110
COVER
3
01010-31225
BOLT
4
01602-01236
WASHER,SPRING
5
08125-01200
LAMP ASS'Y
6
20S-06-14110
COVER
7
20S-06-14120
BRACKET
8
01010-31225
BOLT
9
01602-01236
WASHER,SPRING
10
08160-41200
HORN
11
01010-30816
BOLT
12
01602-00825
WASHER,SPRING
13
20N-06-11230
SWITCH,HORN
14
20S-06-13110
SEAT
15
01220-40316
SCREW
16
01601-00307
WASHER,SPRING
17
08073-00505
SWITCH,OIL PRESSURE
18
198-06-11940
SENSOR
19
20S-06-13410
MOTOR,WIPER
19
08180-01280
WIPER MOTOR ASS'Y,WIPER
20
01220-40516
SCREW
20
01010-30612
BOLT
21
01601-20513
WASHER,SPRING
21
01602-00619
WASHER,SPRING
22
01641-20508
WASHER
23
20S-06-13470
ARM
23
08184-20400
ARM
24
20S-06-13430
BLADE
24
08185-00400
BLADE
25
08141-01200
LAMP,ROOM
26
01220-40416
SCREW
27
01601-20410
WASHER,SPRING
28
01641-20405
WASHER
29
20T-06-23111
WIRE ASS'Y
29
20T-06-23110
WIRE ASS'Y
30
01010-31016
BOLT
31
01642-01016
WASHER
32
20T-06-22140
WIRE ASS'Y
33
08037-03614
GROMMET
34
20R-06-11240
WIRE
35
01010-31016
BOLT
36
01642-01016
WASHER
37
20T-06-23121
WIRE ASS'Y
37
20T-06-23120
WIRE ASS'Y
38
20T-06-22160
WIRE
39
20S-06-13190
WIRE
40
20S-06-14171
WIRE ASS'Y
40
20S-06-14170
WIRE ASS'Y
41
20T-06-11170
WIRE
42
08035-01510
CLIP
43
01010-31020
BOLT
44
01602-01030
WASHER,SPRING
45
08037-02512
GROMMET
46
08038-00519
CAP
47
08034-00834
BAND
48
08036-02514
CLIP
49
08036-10814
CLIP
50
08036-01414
CLIP
51
08036-10810
CLIP
52
08036-01814
CLIP
53
20T-06-23130
WIRE ASS'Y
54
203-06-21150
CLIP
55
130-06-14270
GROMMET
56
20S-977-1130
WIRE
57
20S-977-1140
WIRE
58
20S-977-1150
WIRE
59
01010-31016
BOLT
60
01642-21016
WASHER
61
20S-06-13460
WIRE ASS'Y
Выбрано товаров: 69
