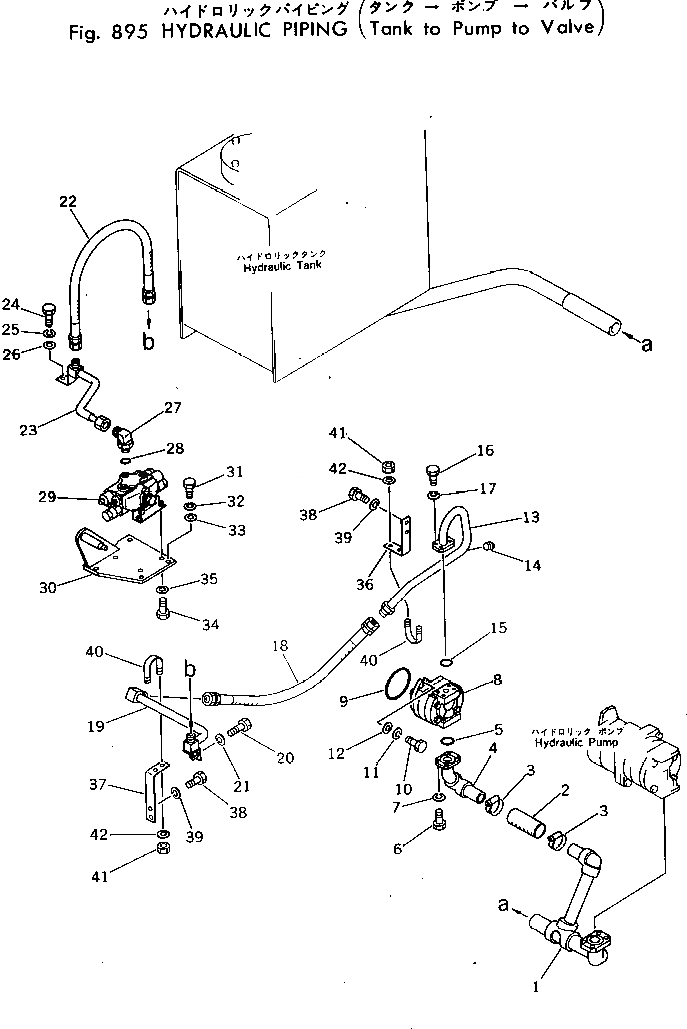

Запчасти Komatsu PC40-1 ГИДРОЛИНИЯ (ИЗ БАКА В НАСОС - КЛАПАН) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20T-910-2111

TUBE

2

07260-03211

HOSE

3

07281-00489

CLAMP

4

20T-910-2121

TUBE

5

07000-03032

O-RING

6

01010-31035

BOLT

7

01602-01030

WASHER,SPRING

8

705-11-23010

PUMP ASS'Y,(SEE FIG. 891)

9

07000-02085

O-RING

10

01010-31035

BOLT

11

01602-01030

WASHER,SPRING

12

01643-31032

WASHER

13

20T-910-2221

TUBE

14

07042-20108

PLUG

15

07000-03025

O-RING

16

01010-30835

BOLT

17

01602-00825

WASHER,SPRING

18

07108-20505

HOSE

19

20T-910-2230

TUBE

20

01010-31030

BOLT

21

01602-01030

WASHER,SPRING

22

07108-20507

HOSE

23

20T-910-2131

TUBE

24

01010-31025

BOLT

25

01602-01030

WASHER,SPRING

26

01643-31032

WASHER

27

07235-10522

ELBOW

28

07002-12434

O-RING

29

700-21-16001

VALVE ASS'Y,(SEE FIG. 892)

30

20T-910-2310

BRACKET

31

01010-31030

BOLT

32

01602-01030

WASHER,SPRING

33

01643-31032

WASHER

34

01010-30825

BOLT

35

01602-00825

WASHER,SPRING

36

20T-910-2250

PLATE

37

20T-910-2240

PLATE

38

01010-31025

BOLT

39

01602-01030

WASHER,SPRING

40

07283-32236

CLIP

41

01599-01011

NUT

42

01643-31032

WASHER
