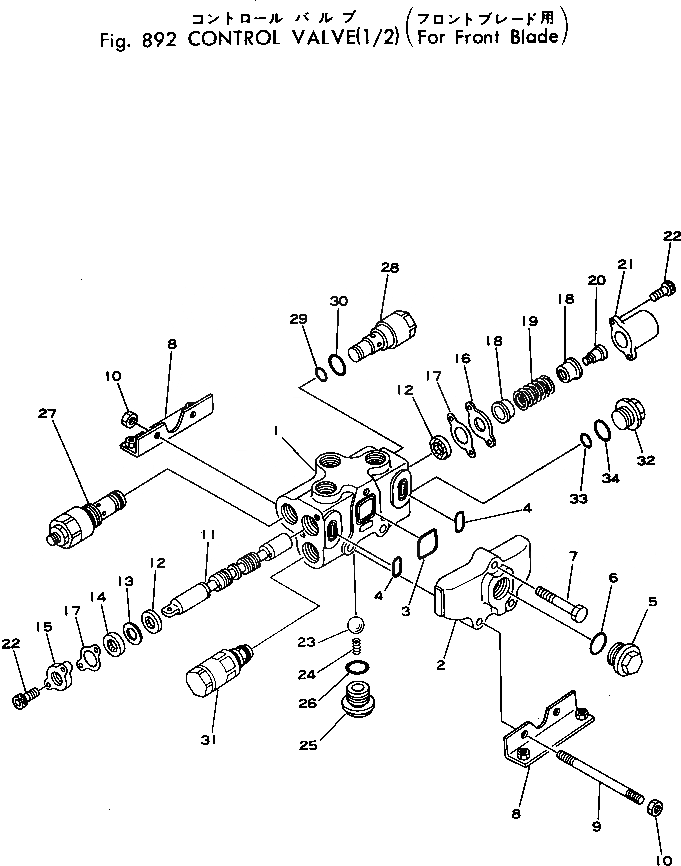

Запчасти Komatsu PC40-1 УПРАВЛЯЮЩ. КЛАПАН (/) (ДЛЯ ПЕРЕДН. ОТВАЛ) ОПЦИОННЫЕ КОМПОНЕНТЫ

|$0

700-21-16001

VALVE ASS'Y

1

BODY,VALVE

2

COVER

3

07000-13040

O-RING

4

700-22-11450

O-RING

5

700-22-11370

PLUG

6

07002-02434

O-RING

7

700-21-11120

BOLT

8

700-26-11170

ANGLE

9

700-21-11110

STUD

10

01580-00806

NUT

11

SPOOL

12

700-22-11251

U-PACKING

13

700-22-11430

COLLAR

14

700-22-11261

SEAL,DUST

15

700-22-11270

PLATE

16

700-22-11281

PLATE

17

700-22-11420

GASKET

18

700-22-11290

RETAINER

19

700-22-11311

SPRING

20

700-22-11320

PLUG

21

700-22-11331

COVER

22

01252-40616

BOLT

23

700-22-12340

BALL

24

700-22-12350

SPRING

25

700-22-11351

PLUG

26

07002-12434

O-RING

27

700-22-52000

VALVE ASS'Y,(SEE FIG. 893)

28

700-22-11380

PLUG

29

07000-12014

O-RING

30

07002-02434

O-RING

31

700-20-72000

VALVE ASS'Y,(SEE FIG. 893)

32

700-22-11360

PLUG

33

07000-12014

O-RING

34

07002-02434

O-RING
