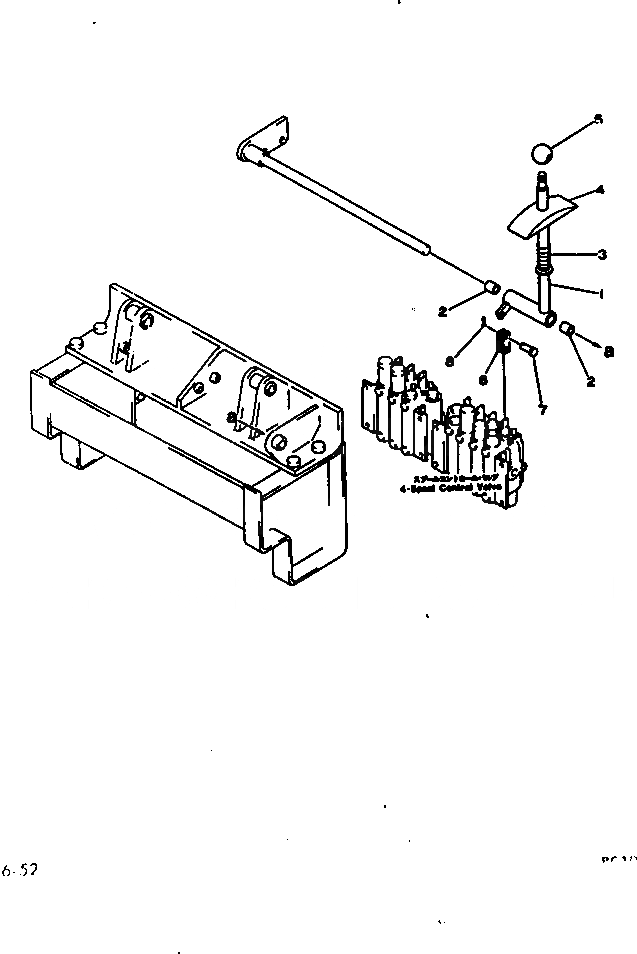

Запчасти Komatsu PC40-1 РЫЧАГ УПРАВЛ-Я (/) (КРОМЕ ЯПОН.) ГИДРАВЛИКА

1

20T-43-11213

LEVER,L.H.

1

20T-43-11381

LEVER,R.H.

2

135-43-35440

SPRING

3

20T-43-11360

COVER

4

20R-43-11280

KNOB

5

20T-43-14110

END,L.H.

5A

20T-43-11290

LEVER,R.H.

6

20T-43-11310

PIN

7

04050-13020

PIN,COTTER

8

01640-21426

WASHER

9

01593-11411

NUT

10

04050-13022

PIN,COTTER

|$12

20T-43-00080

LEVER ASS'Y,L.H.

|$13

20T-43-00030

LEVER ASS'Y,R.H.

11

LEVER,L.H.

11

LEVER,R.H.

12

20T-43-11280

BUSHING

13

101-75-31870

YOKE

13A

04213-20830

YOKE

14

04205-10822

PIN

15

04050-12012

PIN,COTTER

|$21

20T-43-00070

LEVER ASS'Y,L.H.

|$22

20T-43-00040

LEVER ASS'Y,R.H.

16

LEVER,L.H.

16

LEVER,R.H.

17

20T-43-11280

BUSHING

18

20T-43-11320

JOINT

19

01643-31032

WASHER

20

20T-43-11330

END

21

01580-11008

NUT

22

01593-11008

NUT

23

04050-12018

PIN,COTTER

24

04213-20625

YOKE

25

04205-10618

PIN

26

04050-11610

PIN,COTTER

27

20T-43-11270

HINGE

28

01220-40616

SCREW

29

01602-00619

WASHER,SPRING

30

01643-30623

WASHER
