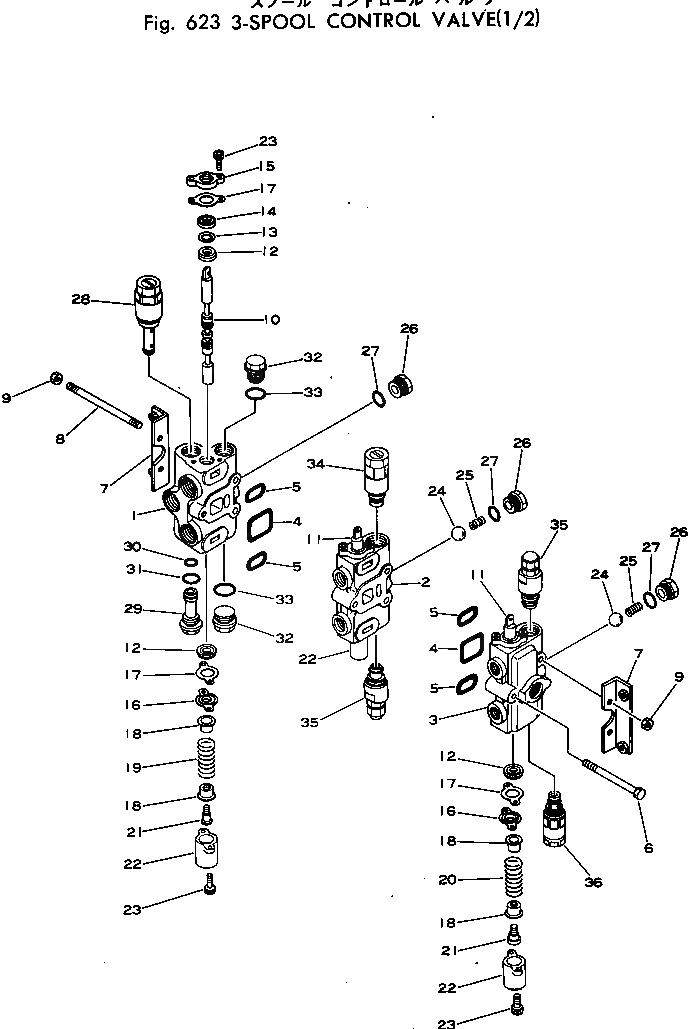

Запчасти Komatsu PC40-1 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН (/) ГИДРАВЛИКА

|$0

700-23-13001

VALVE ASS'Y

1

BODY,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

07000-13040

O-RING

5

700-22-11450

O-RING

6

700-23-13140

BOLT

7

700-26-11170

ANGLE

8

700-23-13110

STUD

9

01580-10806

NUT

10

SPOOL

11

SPOOL

12

700-22-11251

U-PACKING

13

700-22-11430

COLLAR

14

700-22-11261

SEAL,DUST

15

700-22-11270

PLATE

16

700-22-11281

PLATE

17

700-22-11420

GASKET

18

700-22-11290

RETAINER

19

700-22-11311

SPRING

20

700-23-13130

SPRING

21

700-22-11320

PLUG

22

700-22-11331

COVER

23

01252-40616

BOLT

24

700-22-12340

BALL

25

700-22-12350

SPRING

26

700-22-11351

PLUG

27

07002-12434

O-RING

28

700-20-53000

VALVE ASS'Y,(SEE FIG. 624)

29

700-26-11150

PLUG

30

07000-12014

O-RING

31

07002-02434

O-RING

32

700-22-11370

PLUG

33

07002-02434

O-RING

34

700-20-71000

VALVE ASS'Y,(SEE FIG. 624)

35

700-20-69000

VALVE ASS'Y,(SEE FIG. 624)

36

700-20-65000

VALVE ASS'Y,(SEE FIG. 624)
