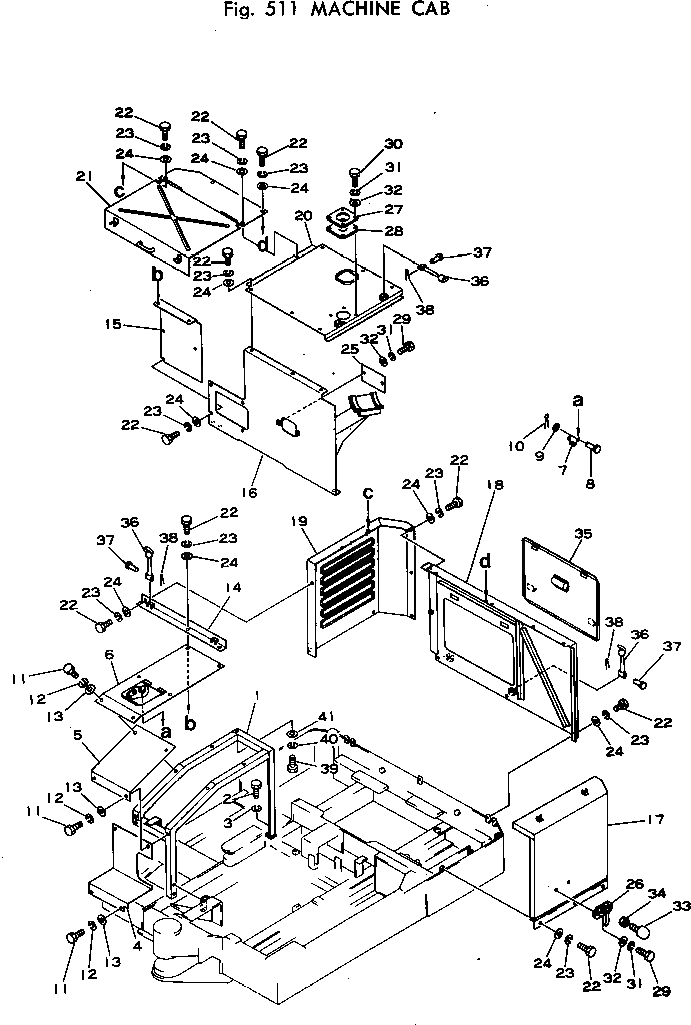

Запчасти Komatsu PC40-1 КАБИНА ОСНОВНАЯ РАМА И КАБИНА

1

20T-54-24211

BRACKET

2

01010-31020

BOLT

3

01602-01030

WASHER,SPRING

4

20T-54-21231

COVER

5

20T-54-21240

COVER

6

20T-54-24260

COVER

7

198-57-11150

SPRING

8

04205-10516

PIN

9

01641-20508

WASHER

10

04050-11208

PIN,COTTER

11

01010-31025

BOLT

12

01602-01030

WASHER,SPRING

13

01643-31032

WASHER

14

20T-54-21220

PLATE

15

20T-54-24280

COVER

16

20T-54-24161

COVER

17

20T-54-24111

COVER

18

20T-54-24361

COVER

19

20T-54-24121

COVER

20

20T-54-24131

COVER

21

20T-54-24371

COVER

22

01010-31025

BOLT

23

01602-01030

WASHER,SPRING

24

01643-31032

WASHER

25

20T-54-14320

PLATE

26

20T-54-14310

STOPPER

27

20T-54-24430

PLATE

28

20T-54-24440

RUBBER

29

01010-31025

BOLT

30

01010-31020

BOLT

31

01602-01030

WASHER,SPRING

32

01643-31032

WASHER

33

09453-00002

STOPPER

34

01580-01210

NUT

35

20T-54-24380

COVER

36

09450-00000

CATCH

37

09450-00002

PIN

38

04050-11610

PIN,COTTER

39

01010-31020

BOLT

40

01602-01030

WASHER,SPRING

41

01643-31032

WASHER
