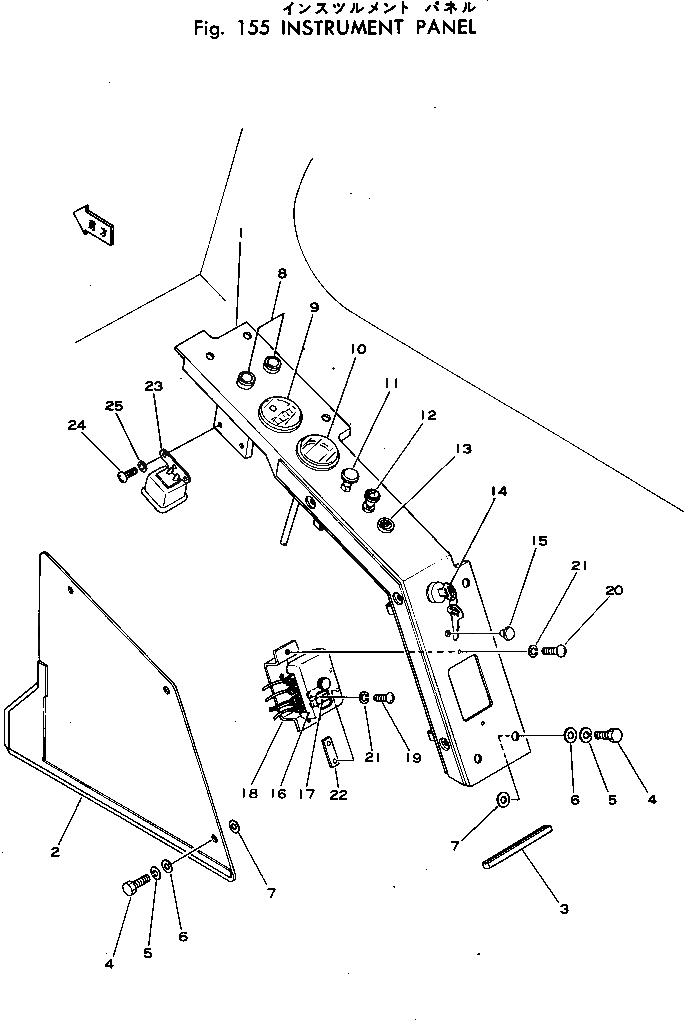

Запчасти Komatsu PC40-1 ПАНЕЛЬ ПРИБОРОВ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20T-06-11312

PANEL,INSTRUMENT

2

20T06-11323

COVER

3

20T-06-11330

SEAL

4

01010-31025

BOLT

5

01602-01030

WASHER,SPRING

6

01643-31032

WASHER

7

01641-21016

WASHER

8

08147-21200

LAMP,INDICATOR

9

08687-21200

METER,SERVICE

10

130-06-B1171

GAUGE,WATER TEMPERATURE

11

08061-10010

SWITCH,LAMP

12

08183-00000

SWITCH,WIPER

13

600-815-1790

SIGNAL,HEATER

14

08086-10000

SWITCH,STARTING

15

130-911-1640

PLUG

16

08043-04000

BOX,FUSE

17

08040-02000

FUSE, 20A

18

20R-06-11320

BRACKET

19

01220-40520

SCREW

20

01220-40512

SCREW

21

01601-00513

WASHER,SPRING

22

150-06-14290

TERMINAL

23

08163-01200

RELAY,HORN

24

01220-40612

SCREW

25

01602-00619

WASHER,SPRING
