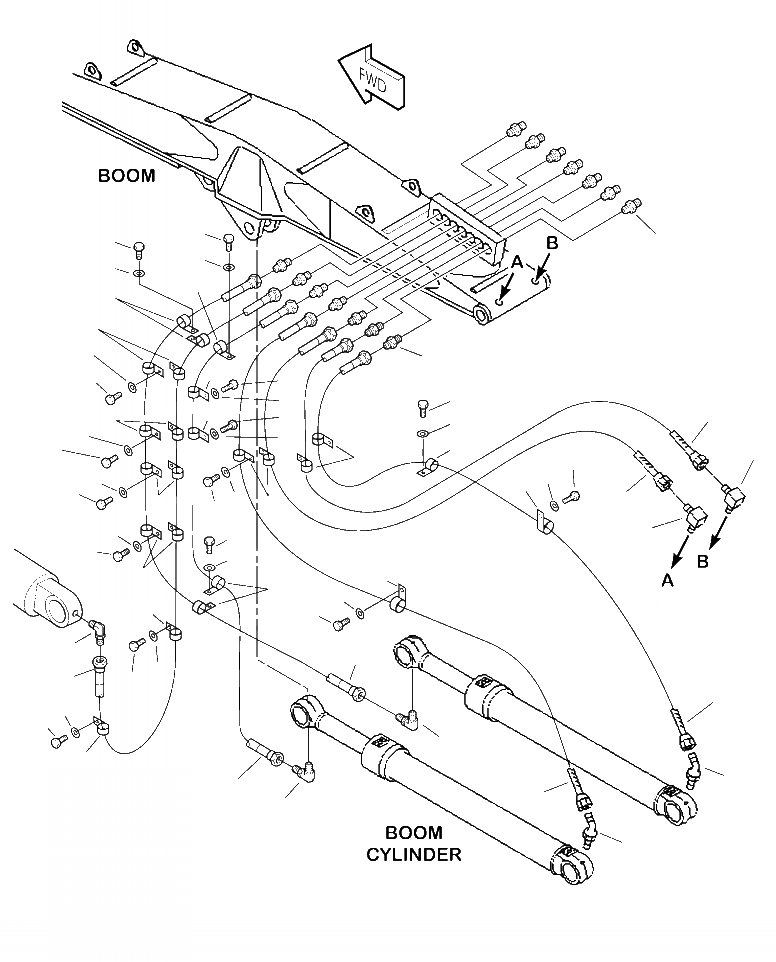

Запчасти Komatsu PC390LL-10 A50601 T-A LOG ПОГРУЗ. СМАЗ. ЛИНИИ (ОСНОВН. СТРЕЛА) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

07020-00000

GREASE FITTING (STRAIGHT)

2

205-70-51390

CONNECTOR, STR BULKHEAD 2238-2-4S

3

207-62-U1190

HOSE, MAIN CYL. BASE LEFT SIDE

4

207-62-U1230

HOSE, MAIN CYL. BASE RIGHT SIDE

5

207-62-U1210

HOSE, MAIN BOOM BASE RIGHT SIDE

6

207-62-U1220

HOSE, MAIN BOOM BASE LEFT SIDE

7

20F-70-16190

90 DEGREE ELBOW, FEMALE

8

205-70-65780

ELBOW

9

04434-51212

CLIP

10

01010-81230

BOLT

11

01643-31232

WASHER

12

04434-51212

CLIP

13

01010-81220

BOLT

14

01643-31232

WASHER

15

04434-51212L

CLIP

16

01010-81220

BOLT

17

01643-31232

WASHER

18

207-62-U1240

HOSE, BOOM CYLINDER HEAD L.H.

19

20F-70-16190

ELBOW

20

207-62-U1250

HOSE, ARM CYLINDER BOTTOM

21

04434-51212

CLIP

22

01010-81225

BOLT

23

01643-31232

WASHER

24

04434-51212

CLIP

25

01010-81225

BOLT

26

01010-81220

BOLT

27

01643-31232

WASHER

28

207-62-U1260

HOSE

29

04434-51212

CLIP

30

01010-81225

BOLT

31

01643-31232

WASHER

32

04434-51212

CLIP

33

01010-81220

BOLT

34

01643-31232

WASHER
