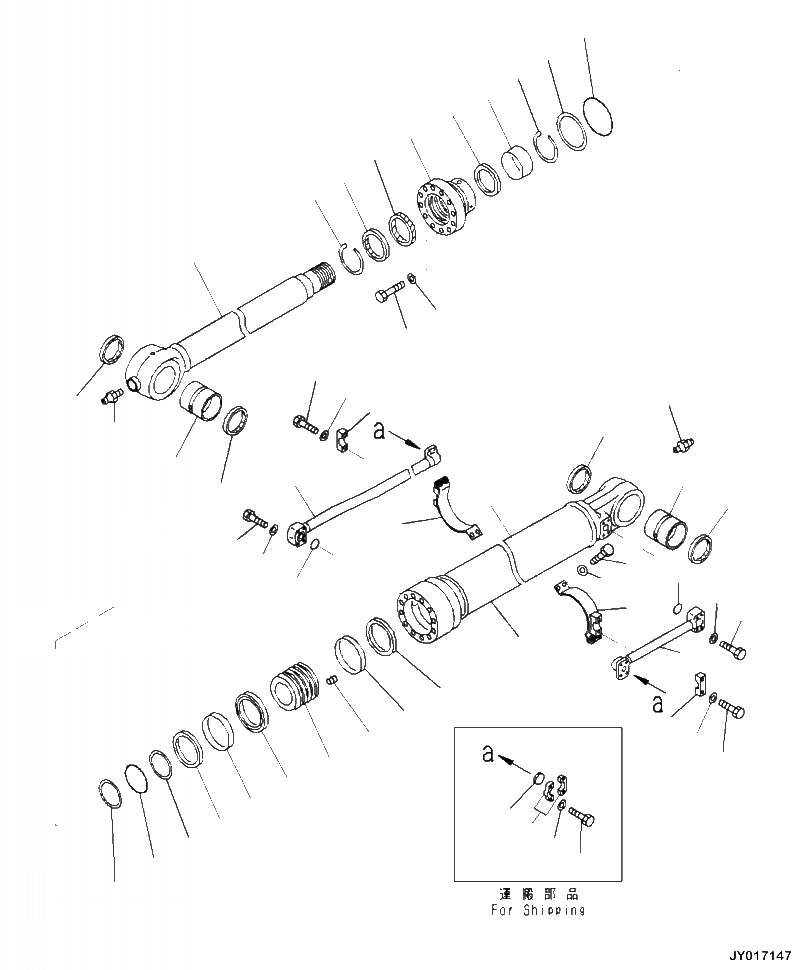

Запчасти Komatsu PC390LL-10 A50601 T-A ЦИЛИНДР ASSEMBLY КОВШ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

707-E1-00710

CYLINDER

1

721-13-14060

CYLINDER

2

721-58-10410

ROD, PISTON

3

707-76-90490

BUSHING

4

07145-00090

SEAL, DUST

5

07020-00000

FITTING, GREASE

6

207-63-76170

BUSHING

7

207-70-72120

SEAL, DUST

8

07020-00000

FITTING, GREASE

9

707-27-14690

HEAD, CYLINDER

10

707-56-10740

SEAL, DUST

11

07179-13114

RING, SNAP

12

707-52-90781

BUSHING

13

707-51-10860

PACKING, ROD

14

707-51-10650

RING, BUFFER

15

707-35-31310

RING, BACK-UP

16

07000-B5130

O-RING

17

01010-81875

BOLT

18

707-41-11840

WASHER

19

707-75-10160

RING, SNAP

20

707-36-14650

PISTON

21

707-44-14150

RING, PISTON

22

707-39-14110

RING, WEAR

23

707-35-30900

RING, BACK-UP

24

07000-B5090

O-RING

25

707-44-14910

RING

26

01310-01216

SCREW

27

707-86-00840

TUBE

28

707-86-00850

TUBE

29

07372-21060

BOLT

30

01643-51032

WASHER

31

07000-13035

O-RING

32

707-88-51130

BRACKET

33

07372-21240

BOLT

34

01643-51232

WASHER

35

707-88-10150

CLAMP

36

07372-21245

BOLT

37

01643-31232

WASHER

38

07371-31049

FLANGE, SPLIT

39

707-88-33040

CAP

40

07372-21035

BOLT

41

01643-51032

WASHER

|$42

707-99-59150

K04 SERVICE KIT, BUCKET CYLINDER
