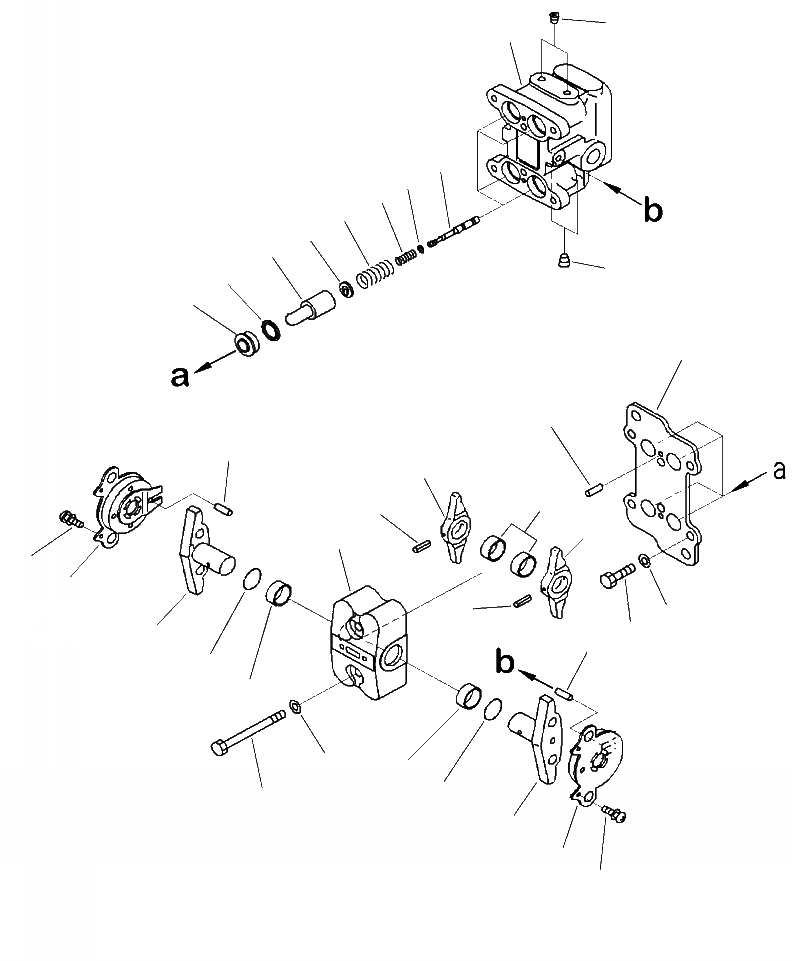

Запчасти Komatsu PC390LL-10 A50601 K-7A КАБИНА ХОД PPC КЛАПАН OPERATORS ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ

|$0

702-16-04260

VALVE, PILOT

1

NSS

VALVE BODY

2

NSS

VALVE

3

702-16-51140

SHIM, T =0.30 MM

4

702-16-53420

SPRING

5

702-16-53140

RETAINER

6

702-16-54420

SPRING

7

702-16-53170

PISTON

8

702-16-71150

SEAL

9

702-16-71160

SEAT

10

NSS

CASE

11

NSS

LEVER

12

NSS

SHAFT

13

702-16-73640

PLATE

14

01010-80855

BOLT

15

01643-30823

WASHER

16

01010-80816

BOLT

17

702-16-54331

WASHER, T = 1.60 MM

|$18

702-16-54341

WASHER, T = 1.30 MM

|$19

702-16-54351

WASHER, T = 1.00 MM

|$20

702-16-56380

WASHER, T = 1.90 MM

|$21

702-16-56390

WASHER, T = 2.20 MM

18

NSS

PIN, SPRING

19

NSS

BUSHING

20

07000-12018

O-RING

21

702-16-73610

DAMPER ASSEMBLY

22

01023-10306

SCREW

23

NSS

PIN

24

04022-04016

PIN, DOWEL

25

NSS

PLUG

26

NSS

PLUG
