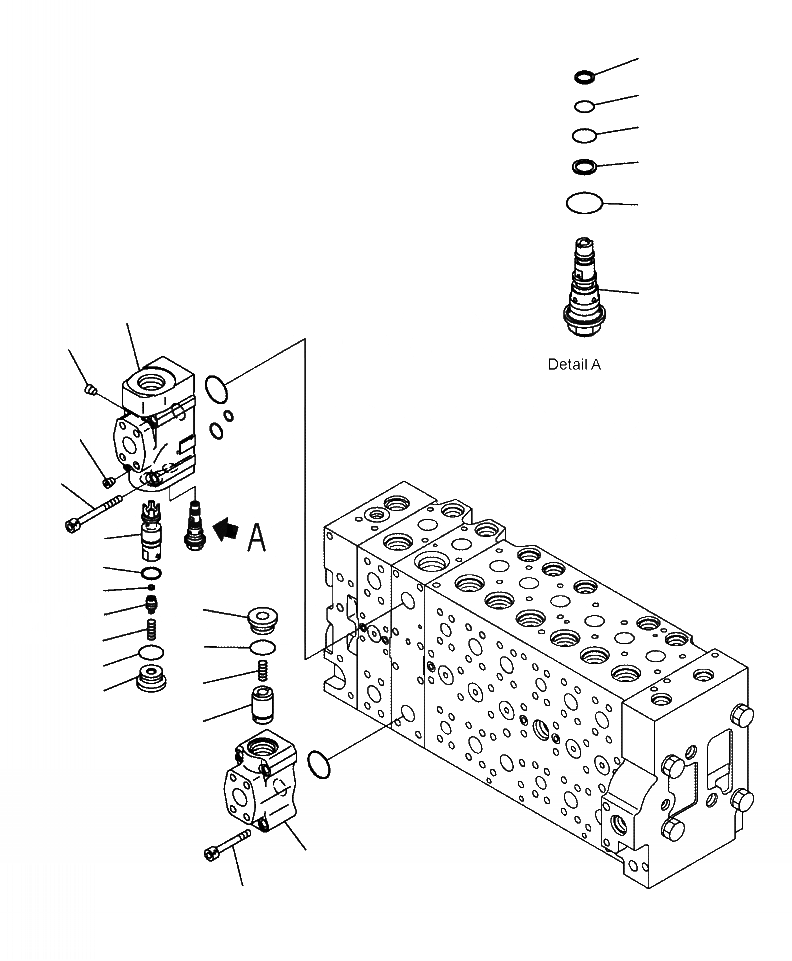

Запчасти Komatsu PC390LC-10 H-A ОСНОВН. УПРАВЛЯЮЩ. КЛАПАН COMPLETE ASSEMBLY (/) ГИДРАВЛИКА

|$3

723-48-26800

CONTROL VALVE

|$4

723-40-84100

VALVE ASSEMBLY

1

NSS

BODY

2

NSS

VALVE

|$7

723-40-82140

SPRING

3

723-40-84130

PLUG

4

07002-13034

O-RING

5

01252-61065

BOLT, HEXAGON SOCKET HEAD

6

723-40-84200

VALVE ASSEMBLY

7

NSS

BODY

8

NSS

VALVE

9

723-40-82140

SPRING

10

723-40-84230

PLUG

11

723-40-82220

FILTER

12

723-46-15350

SEAL

13

723-40-84130

PLUG

14

07002-13034

O-RING

15

NSS

PLUG

16

723-40-92900

VALVE ASSEMBLY

17

07000-12012

O-RING

18

07001-02012

RING, BACK-UP

19

07000-11010

O-RING

20

07001-01010

RING, BACK-UP

21

07002-12034

O-RING

22

723-46-18770

BOLT, HEXAGON SOCKET HEAD
